[pianotech] alternative to new bridge

[Terry Farrell]

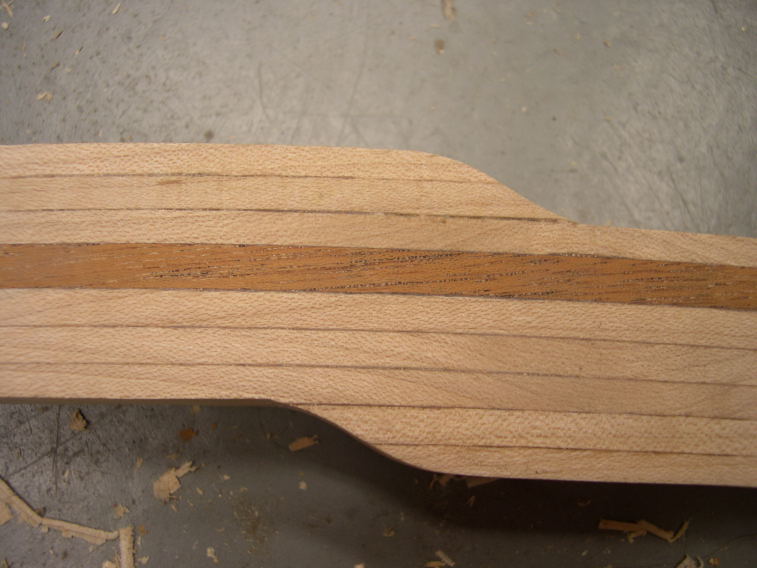

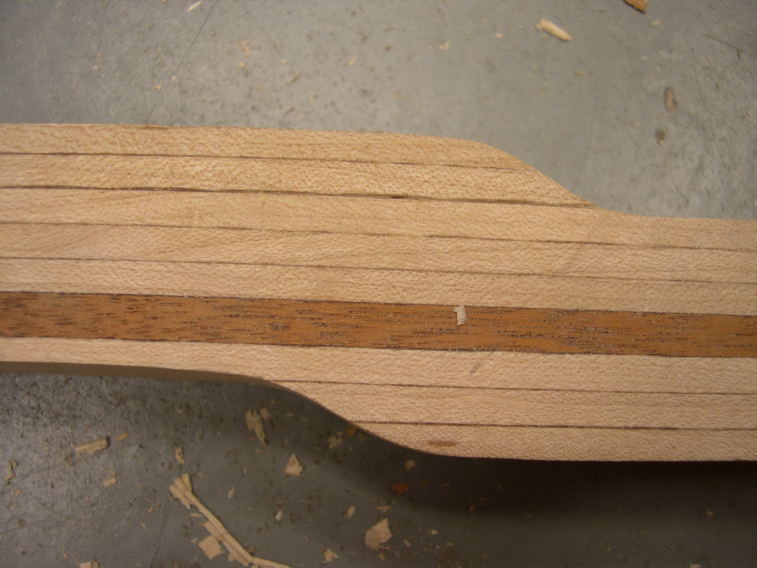

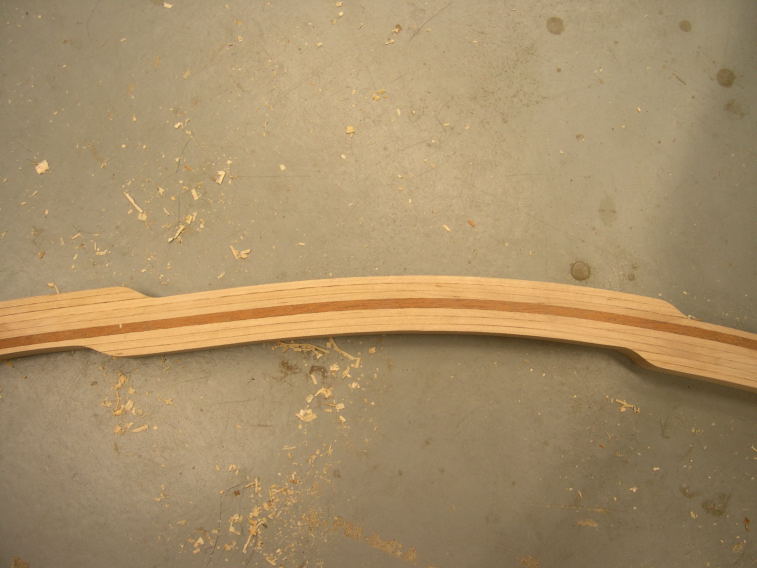

Gene - That's essentially how I've been building my new bridge root doglegs - just adding laminations on the front or back of a central core of laminations to enable machining a suitable dogleg. Here are a few pics for your viewing pleasure (this particular bridge root is for demonstration purposes only - I put a lamination of mahogany in the middle of the bridge so that one can easily see how other laminations terminate at doglegs):

-------------- next part --------------
A non-text attachment was scrubbed...
Name: image0003 copy.jpeg
Type: image/jpg
Size: 76227 bytes
Desc: not available
URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120910/361a789e/attachment-0003.jpg>
-------------- next part --------------



-------------- next part --------------
A non-text attachment was scrubbed...
Name: image0004.jpeg
Type: image/jpg
Size: 95315 bytes
Desc: not available
URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120910/361a789e/attachment-0004.jpg>
-------------- next part --------------



-------------- next part --------------
A non-text attachment was scrubbed...
Name: image0005.jpeg
Type: image/jpg
Size: 95278 bytes
Desc: not available
URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120910/361a789e/attachment-0005.jpg>
-------------- next part --------------


Hope this helps.

Terry Farrell


On Sep 9, 2012, at 7:51 PM, Gene Nelson wrote:

>> I thought of adding material to the back side of the bridge and machining
>> the opposite to keep the bridge width close to original.
>
> That's exactly what I'd do if I was reusing the old bridge. Make sure it
> will either clear the plate, or that you can grind the necessary plate
> clearance.
>
> *** Clearance is good, no plate grinding necessary.
>
>
> I wouldn't separate the bridge. I'd keep as much of the continuous
> structure of the original as I could by scabbing the back side,with a
> stack of say, 2.5-3mm slabs, shaping the new curve, recontouring the
> front to parallel, and recapping the whole thing.
>
>
> ***I have some 1/16" flat sawn maple veneer or I could cut up some denser
> maple stock.  I've got a back post from an old upright waiting for a new
> home. Probably a good idea to quarter the stock, trim the scabbing, epoxy it
> up and clamp in place. It should bend ok to match the contour at 2 to 3mm.
>
> Thanks,
>
> Gene
>
