[pianotech] Chrisman Grand

[David Love]

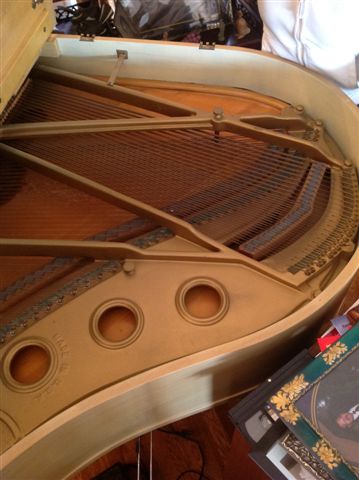

Here's a couple more pictures showing that the tenor aggraffe line has
already been slightly offset and a better picture of the entire length of
the backscale.  Even some of those European loops would probably help back
there.

David Love
www.davidlovepianos.com


-----Original Message-----
From: pianotech-bounces at ptg.org [mailto:pianotech-bounces at ptg.org] On Behalf
Of Ron Nossaman
Sent: Sunday, April 22, 2012 8:57 PM
To: pianotech at ptg.org
Subject: Re: [pianotech] Christman Grand

On 4/22/2012 10:39 PM, David Love wrote:
> Well, it has a longer backscale than a Steinway M.  I haven't actually
heard
> the piano yet.

And easily twice that of a M&H A. With vertical hitches, low bass cores
that don't qualify as tone bars, and a float, it's workable. I'd like to
see the transition a little further forward to keep the lengths shorter
and make the wraps bigger, and the agraffe line offset back for the
strike ratio. It might not be a problem in that small a piano though.

Very interesting.
Ron N
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Chrisman Bass bridge.JPG
Type: image/jpeg
Size: 43891 bytes
Desc: not available
URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120422/2dc05865/attachment-0002.jpeg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Chrisman Agraffe Line.JPG
Type: image/jpeg
Size: 58883 bytes
Desc: not available
URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120422/2dc05865/attachment-0003.jpeg>
