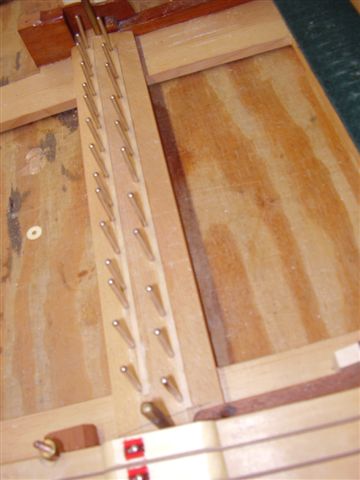

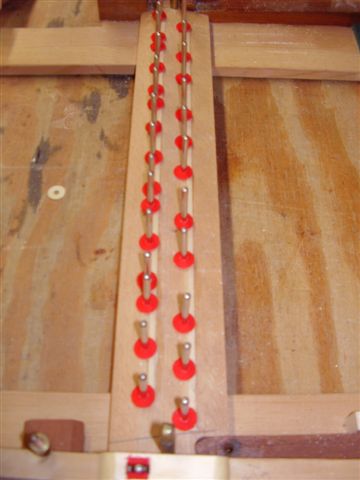

Follow up for Barbara Richmond, somewhere near Peoria: Tried uploading these to the new "higher logic" website but alas, no go (still waiting for those Vulcan consultants to arrive apparently). So I'm posting it here on the old list where it's much simpler and works. @&#*#$(&%*$()$. I hope you see it here. I've copied the new website even though I have no idea how it will come through there. Anyway, this is a picture(s) of the veneer method of lowering the action ratio without moving capstans. It works very well and drops the ratio by about .6. I just did this on an 1970's Teflon Steinway L where I was replacing the action. Switched to 17 mm knuckles but still had a 6.0 ratio (hammer displacement method). Doing this dropped it nicely to about 5.4. (6 mm dip moved the hammer 36 mm on the original (6.0) and 32.5 once the veneer was in place (5.41). Thin veneer (it's probably .025" thick) is cut into strips about 1/8" wide and glued in place behind (in this case since I'm lowering the ratio). In this case I replaced the punchings with thinner ones which I prefer and might be required in some cases. Much easier than moving the capstan and it works quite well. Can also be done in place of changing the shank or knuckle where a lower of the ratio is needed but you're not changing parts or only changing hammers and don't want to alter the hammer weight necessarily. Takes a few hours with all the regulation stuff. Perhaps you are already familiar with the method. David Love www.davidlovepianos.com -------------- next part -------------- A non-text attachment was scrubbed... Name: Changing Action Ratio with Veneer.JPG Type: image/jpeg Size: 32726 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20110626/4fd23690/attachment-0002.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: Changing Action Ratio with Venner 2.JPG Type: image/jpeg Size: 32159 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20110626/4fd23690/attachment-0003.jpeg>
