Bass Bridge Position-upright

[John Delacour]

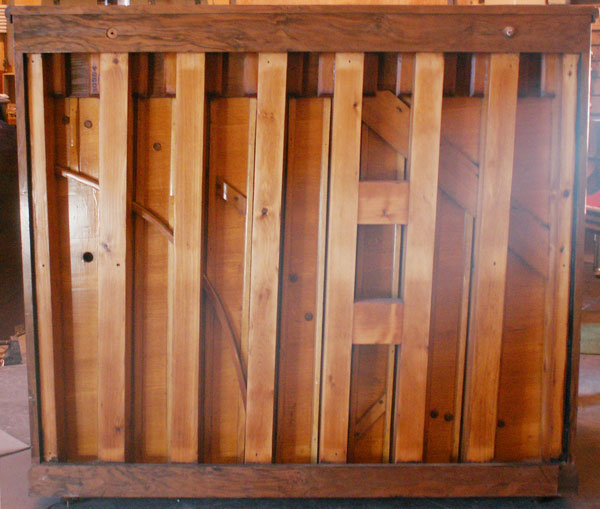

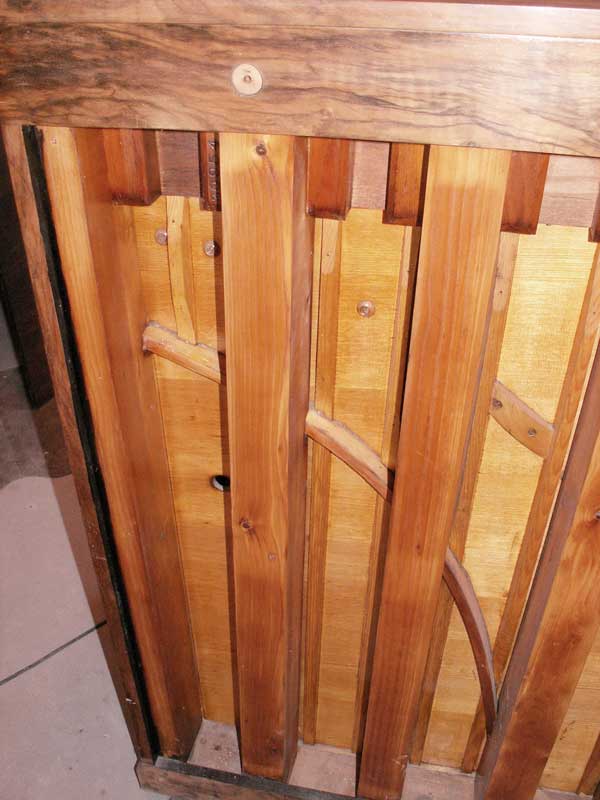

Here are a few pictures of the back of an iron-framed Brinsmead from
about 1878.  Note the tie between the end of the long bridge and the

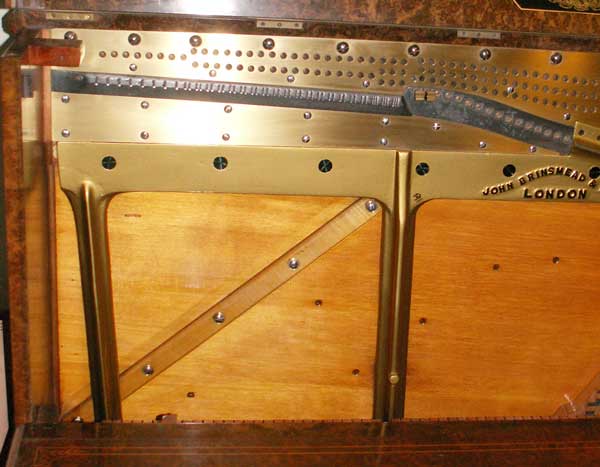

bass bridge.  The view from the front shows the cantilevering device
for the soundboard, which pivots about half way across the diagonal
member whown in the picture of the back.

JD
