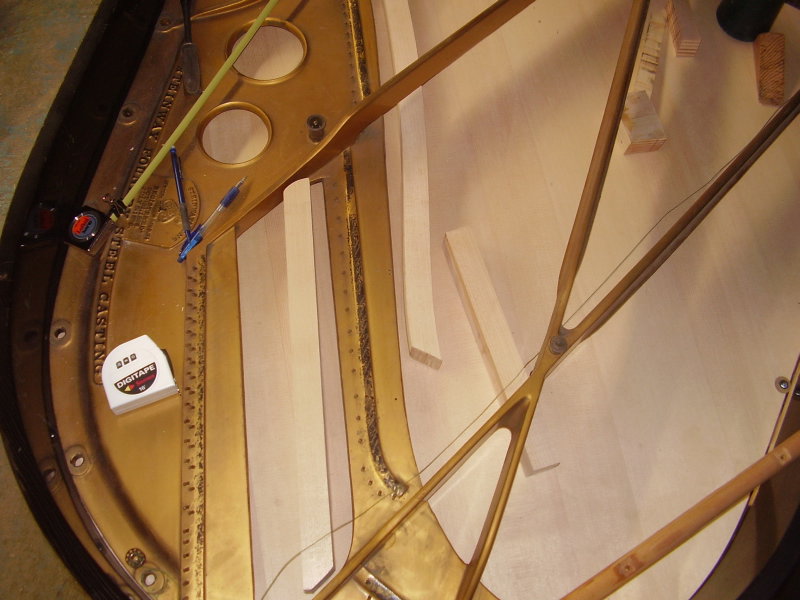

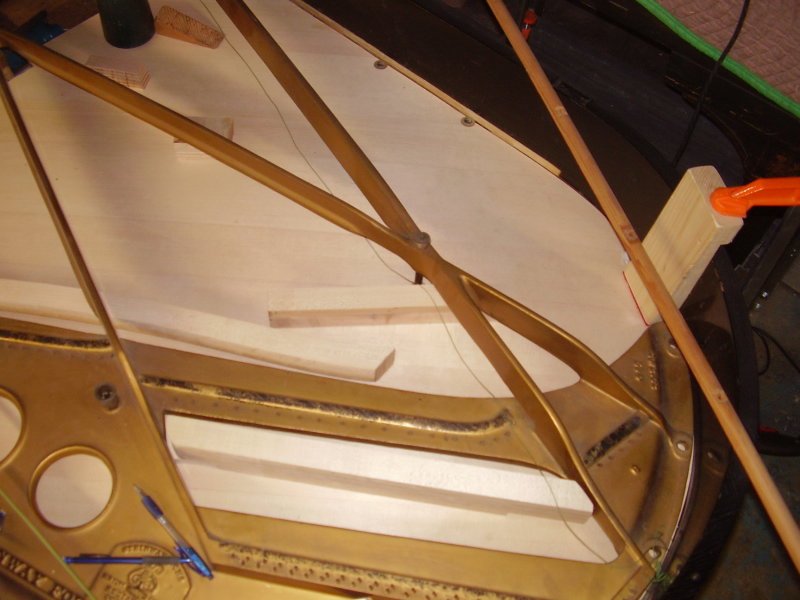

Here are some photos of the roughed in bridge layout. The long bridge has been cut but with a bit of extra so that it may be trimmed a bit more when all is done. You can see the placement of the transition bridge as well. The cantilever has been removed from the bass bridge and it has been moved forward. The cutting of the long bridge has created more space between the low end of the bass bridge and the low end of the tenor bridge. What you don't see is that a bridge extension has been added to the top end of the bass bridge which is hidden underneath the plate and curves away from the nose bolt toward the rim. The transition bridge will have a bit of an extension on the low end in its final form as well. David Love davidlovepianos at comcast.net www.davidlovepianos.com -----Original Message----- From: pianotech-bounces at ptg.org [mailto:pianotech-bounces at ptg.org] On Behalf Of Greg Newell Sent: Saturday, March 08, 2008 5:06 PM To: 'Pianotech List' Subject: RE: Bass Bridge Position David, I would be most interested in the details of this job as I recently picked up an "O" for my personal piano. It needs....everything. I'll be selling the Bosendorfer if anyone in interested. -------------- next part -------------- A non-text attachment was scrubbed... Name: P2240068.jpg Type: image/jpeg Size: 95501 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20080309/be0fd5e5/attachment-0002.jpg -------------- next part -------------- A non-text attachment was scrubbed... Name: P2240070.jpg Type: image/jpeg Size: 90352 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20080309/be0fd5e5/attachment-0003.jpg
