Keybed repair

[Delwin D Fandrich]

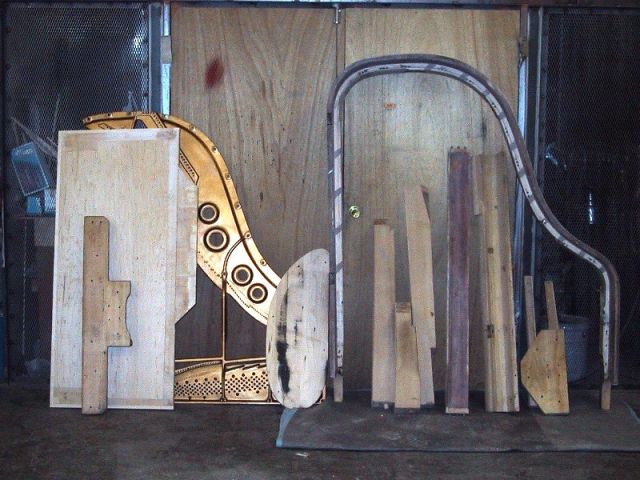

I just remembered that I have a picture of one of these keybeds.

See the attached.

Del
Delwin D Fandrich
Fandrich Piano Company, Inc.
620 South Tower Avenue
Centralia, Washington 98531  USA
Phone: 360.736-7563
E-mail: fandrich at pianobuilders.com

Piano Designs for the 21st Century(R)



| -----Original Message-----
| From: pianotech-bounces at ptg.org
| [mailto:pianotech-bounces at ptg.org] On Behalf Of Dave Doremus
| Sent: March 01, 2007 5:17 AM
| To: Pianotech List; College and University Technicians
| Subject: Keybed repair
|
| Has anyone repaired/replaced a Steinway keybed? I have a
| model B, 20 years old, that was flooded up to the keyframe.
| The soundboard is still in amazingly good shape. It needs
| complete new action, keys, dampers, strings, tuning pins,
| finish work etc, etc. All that is massive but fairly normal.
| What Im worried about is that it looks like the keybed has
| swollen, opening about a 3/16" gap between the rail and
| stiles in the treble end. There are no gaps at the belly rail
| or stretcher. It almost seems as if the rim has spread apart
| a bit at the bottom but not the top. The rim is intact, no
| cracks or gaps. I have not tried applying any clamps yet, Im
| still figuring out whether or not to attempt anything at all.
| The owner would really like to save it if at all possible,
| having heard all my usual warnings about the long term
| viability of the instrument after exposure to that kind of
| moisture. Advice?
| --
| ----Dave
|
|
| -----------------------------
| Dave Doremus, RPT
| New Orleans
| ------------------------------
|
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Piano Kit -- 03 LR.jpg
Type: image/jpeg
Size: 66642 bytes
Desc: not available
Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20070301/49cefa5b/attachment-0001.jpg
