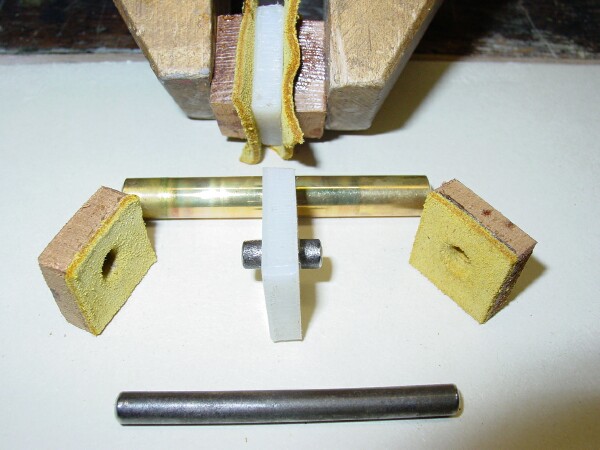

---------------------- multipart/mixed attachment This is a partial re-post of yesterday's submission. It seems to have gotten lost in cyber-space. Here's the attachment of the 60KB jpg file. ~~~~~~~~~~~ A while ago I posted a nifty retro-fit for the pitman which required no drilling. Attached is a photo of the parts. The rod is cut from an old pedal rod. The blocks are glued to the tray bottom and trap lever and positioned for the travel. No need to remove the felt bushing in the keybed. No guess work on drilling for pins in the ends of a dowel. The rod is cut to a length such that when combined with the blocks, the dimension equals the old pitman length plus leather rests. Just remove pitman, scrape off leather and install...simple. -- Regards, Jon Page ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: pitman_retrofit.jpg Type: application/octet-stream Size: 80027 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/fb/66/19/2b/pitman_retrofit.jpg ---------------------- multipart/mixed attachment--
