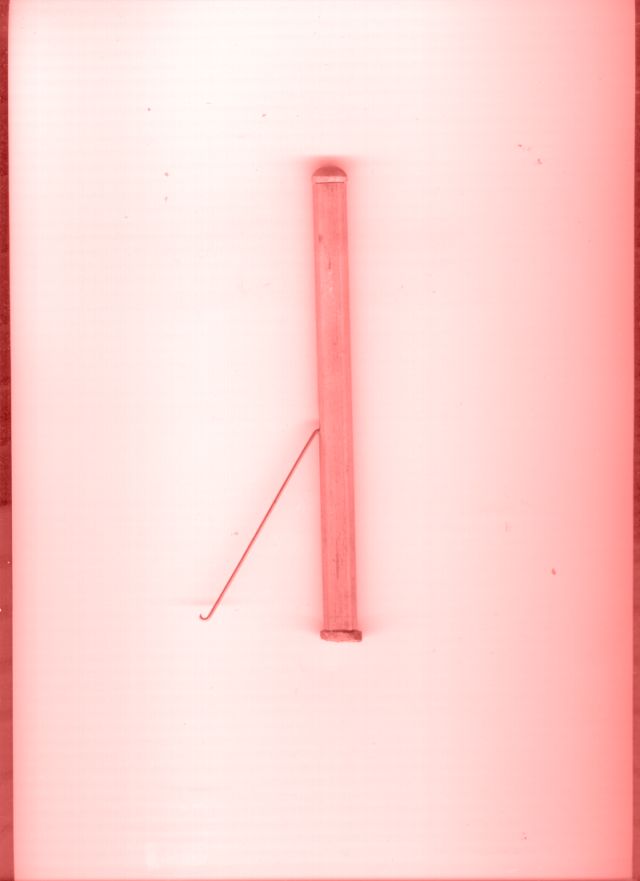

This is a multi-part message in MIME format. ---------------------- multipart/mixed attachment ------=_NextPart_84815C5ABAF209EF376268C8 Barbara, Here's the first one. It is an aluminum tube with a hole drilled/punched in the side. A heavy piece of piano wire is inserted in the hole. The wire is bent about 150 degrees. The "tail" is inside the tube. Press a wooden dowel down the tube, full length to the bottom. This captures the wire in the tube/handle. On the bottom of the tube is a thick leather punching the diameter of the tube. Glue that to the dowel/tube. On the "business end" of the piano wire is a sharp bend, i.e. hook. This "hook" should be about 1/4" below the surface, when you put the wire parallel to the handle. The way you use this tool, is to rest the leather punching on an agraffe top. Insert the hook on the string to be "raised" and pry. Little effort is needed to accomplish a lot of deflection in the string. You can use this under the strings to lower the string,too, but I've not found that necessary. It's a short learning curve to get the feel and you'll become fast at doing string leveling. More to follow Regards, Joe Garrett, R.P.T. (Oregon) Captain, Tool Police Squares R I ------=_NextPart_84815C5ABAF209EF376268C8 An HTML attachment was scrubbed... URL: https://www.moypiano.com/ptg/pianotech.php/attachments/8c/22/44/2c/attachment.htm ------=_NextPart_84815C5ABAF209EF376268C8-- ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: StringLevelingTool#1A.jpg Type: image/jpeg Size: 32190 bytes Desc: StringLevelingTool#1A.jpg Url : https://www.moypiano.com/ptg/pianotech.php/attachments/34/cc/96/c6/StringLevelingTool1A.jpg ---------------------- multipart/mixed attachment--
