First images of Overs no. 6

[Giovanni Voltaggio]

---------------------- multipart/alternative attachment
That looks so nice.

Giovanni Voltaggio
Austin, Texas
                                                                        =20=

                                                                        =20=

                                                             .
On Nov 7, 2005, at 6:06 AM, Overs Pianos wrote:

> Hi all,
>
> Its been very quiet on the list of late.
>
> This week we completed fitting the bass corner cut-off and the =20
> treble cut-off to the case of piano no. 6 (the one we'll be =20
> bringing to the Rochester PTG convention next June). Please find =20
> below a reduced size version of an overhead image.
>
=EF=BF=BC

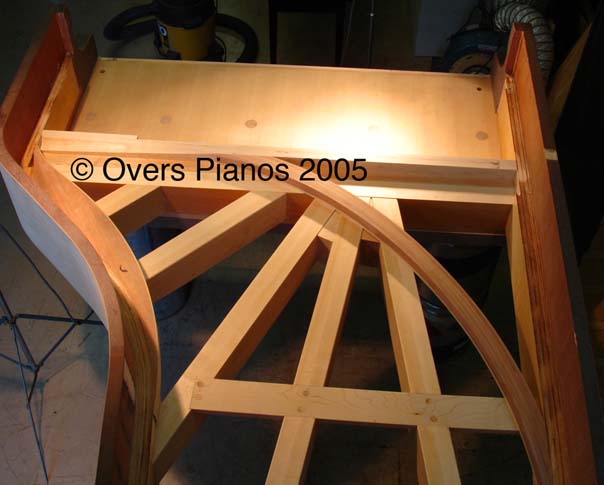

> Image showing the sound board cutoff sections, fitted to the case =20
> of the Overs 225 no.6, under construction.
>
>
> For those of you who  have a 24" screen, a larger version of the =20
> above image can be found at;
>
> http://members.optusnet.com.au/ronovers/oversno6.1.jpg  (144 K)
>
> I if you have a smaller screen you'll need to scroll around a bit.
>
> A closer image of the treble cut-off area can be found at;
>
> http://members.optusnet.com.au/ronovers/oversno6.2.jpg  (144K)
>
> In the above image link, you can see that the belly rail, back =20
> beams, and inner rim are all manufactured from rock maple. The =20
> outer rim is maple also but its covered and can't be seen. The top =20
> surface of the belly rail in this instrument is flat, and not =20
> crowned. Both cut-offs are made from Antarctic Beech (nothofagus =20
> Moorei - darker wood)and Silky Beech (Citronella Moorei - lighter =20
> coloured wood). Both are local timbers, and structurally at least =20
> as strong as Maple.
>
> Kawai KG series agraffes required.
>
> I am wondering if someone could supply me with two new Kawai KG =20
> series trichord agraffes. I had quite a stock of these things, but =20
> I've supplied a few too many to various techs over the years. Now =20
> when I want a couple myself I haven't got any. If anybody has a =20
> few, and can spare two, I'd greatly appreciate it.
>
> Thanks,
> Ron O.
