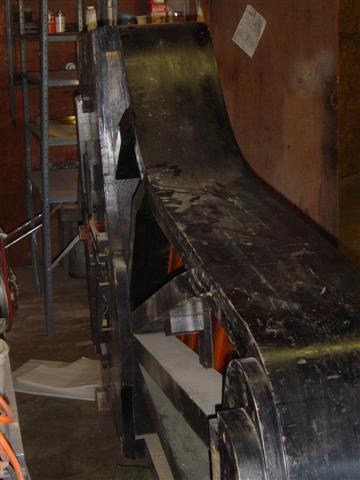

This is a multi-part message in MIME format. ---------------------- multipart/mixed attachment Phil, No treble bell at all (picture of bracing attached). I sure don't understand what those things are supposed to do. Why have that extra support up front, and then leave practically the whole straight part of the rim disconnected from everything? The braces fan out, mostly parallel to the strings. Why not a short perpendicular brace to the middle of the rim? My understanding of a ring bridge is one where the bass and treble sections are connected with a short curved segment (like Shigeru Kawaii 9' grands). On this one, the bridges are separate, but the bass bridge extends past the lowest string about 5", curving back toward the keyboard. --Cy-- ----- Original Message ----- From: "Phillip Ford" <fordpiano@earthlink.net> To: <pianotech@ptg.org> Sent: Thursday, April 01, 2004 12:17 PM Subject: Re: AB Chase Concert Grand > Cy, > > I recently restrung one of these. The plate's sort of like the big > Steinways to accomodate the ring bridge. Those were English loops > on each string back there on the piano that I did. Serial number 62770 which > I somehow concluded was 1920. They seemed to make about 1000 pianos a year > as best I could tell, which would put your piano around 1942. The one that > I did had a heavy metal bell under the treble end about where the Steinway > bell would be. But unlike the Steinway bell, which is cantilevered off the > rim, this one spanned between the rim and bellyrail. Does your piano have > that? > > Phil Ford > > At 08:02 AM 4/1/2004, you wrote: > >List, > > > >Here's another interesting piano in the shop: an A. B. Chase concert > >grand. The first few notes of the treble bridge pass under plate webbing > >at the tail, and have hitch pins way back by the rim (see photo). Its > >serial number is around 84,000, which doesn't have a clear indication in > >Pierce. Any ideas as to the year? The fallboard logo says "A. B. Chase." > >in block letters, with a period at the end, and appears to have been > >hand-painted. > > > >--Cy Shuster-- > >Rochester, MN > > _______________________________________________ > pianotech list info: https://www.moypiano.com/resources/#archives > ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: 022 AB Chase 9 Ft Concert Grand (Small).jpg Type: image/jpeg Size: 34018 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/05/e1/2d/0e/022ABChase9FtConcertGrandSmall.jpg ---------------------- multipart/mixed attachment--
