Jim-

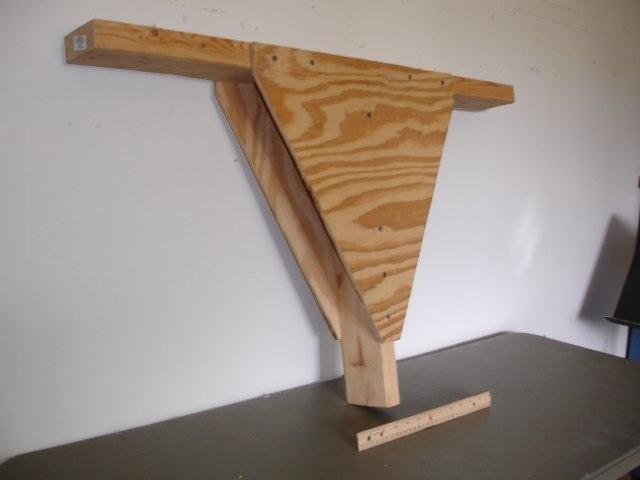

Here's my T, which I've used solo with smaller pianos. My preference is to pull the action and clamp the T to the keybed, but I have also screwed it to the bottom of the keybed. Neatly made holes don't seem so bad on the bottom of the keybed.
One of the movers in Charlotte has made a round bottomed lyre substitute with holes and slots to fit on pianos with lyre bolts, otherwise he screws it to the keybed.
Ed S.
----- Original Message -----
From: Jim Busby
To: Ed Sutton ; College and University Technicians
Sent: Tuesday, July 01, 2008 5:04 PM
Subject: RE: [CAUT] piano moving stuff
Ed,
I get the drift of how this will work, and I like it. Keith and I are designing one. One question; do you just drill new holes in the pianos to attach it or do you drill new holes through the jig for different pianos? If the latter, how is the easiest way? Seems like two new holes in the pianos (since they’re “our” pianos) wouldn’t be a big deal.
Thanks Ed. Good job in Anaheim, BTW!
Regards,
Jim
------------------------------------------------------------------------------
From: caut-bounces at ptg.org [mailto:caut-bounces at ptg.org] On Behalf Of Ed Sutton
Sent: Tuesday, July 01, 2008 10:47 AM
To: College and University Technicians
Subject: Re: [CAUT] piano moving stuff
Next time I tip a piano...
Ed
----- Original Message -----
From: Jim Busby
To: College and University Technicians
Sent: Monday, June 30, 2008 4:37 PM
Subject: Re: [CAUT] piano moving stuff
Ed,
Yes. Photos! (Please? : ->)
Jim
----------------------------------------------------------------------------
From: caut-bounces at ptg.org [mailto:caut-bounces at ptg.org] On Behalf Of Fred Sturm
Sent: Thursday, June 26, 2008 12:41 PM
To: Ed Sutton; College and University Technicians
Subject: Re: [CAUT] piano moving stuff
Hi Ed,
Sounds like a great idea. Photos?
Regards,
Fred Sturm
University of New Mexico
fssturm at unm.edu
On Jun 26, 2008, at 11:31 AM, Ed Sutton wrote:
List,
For turning small pianos in tight spaces, make a "T" of 2 x 4's, reinforced with plywood plates. The leg should be about the length of the lyre.
Remove the lyre and screw the T to the keybed, or also remove the action and clamp the T along the front of the keybed. Unlike the horse, it will turn the piano "in place." If you're tipping onto blocks or a raised skid board, attach the T a little bit off center to the bass side and the piano will land comfortably balanced for the "up lift."
Ed Sutton
----- Original Message -----
From: Jim Busby
To: College and University Technicians
Sent: Thursday, June 26, 2008 1:18 PM
Subject: Re: [CAUT] piano moving stuff
List,
In very small practice rooms sometimes moving on the lyre is the only way. The main problem with this practice is the loosening of lyre wedges, etc. and so you must always check the integrity of the lyre. One of the best movers in Utah always uses the lyre and claims 40 years of “no problems”. I have a horse. Love it, sometimes…
Jim Busby
--------------------------------------------------------------------------
From: caut-bounces at ptg.org [mailto:caut-bounces at ptg.org] On Behalf Of Ward & Probst, Inc
Sent: Wednesday, June 25, 2008 4:00 PM
To: 'College and University Technicians'
Subject: Re: [CAUT] piano moving stuff
PW,
Many movers regularly turn grands on the lyre without problems. I don't because we have the Horse and it seems safer to me. Gordon Crail, who invented the Horse, is a friend and we have a prototype that has been used for years in the shop and on the road. He suggests, blocking the tail end of the dolly up, using a person to counter balance the key end, and using a lift strap. Doing this saves a lot of strain, as about half of the lift is done. I don't have pics of the skids but the GC is sort of like what we have. We have fixed wheels in the center and swivel wheels at each end.
I enjoyed the Annual and it seemed to me that most everyone else did. The facility was good and the Institute and Home Office staff had every thing running smoothly. Next year it will be in Grand Rapids, MI at the Amway Grand Hotel which looks like one of the best venues yet.
DP
July 15, 2009--July 19, 2009
52ND ANNUAL CONVENTION
Amway Grand Hotel
Grand Rapids, MI
Contact: Sandy Roady
4444 Forest Avenue, Kansas City, KS 66106
Phone: 913-432-9975
Fax: 913-432-9986
-----Original Message-----
From: caut-bounces at ptg.org [mailto:caut-bounces at ptg.org] On Behalf Of Paul T Williams
Sent: Wednesday, June 25, 2008 4:17 PM
To: College and University Technicians
Subject: Re: [CAUT] piano moving stuff
I NEVER use the lyre for tilting. Who does such a horrible thing? How would one combine the two? I'm trying to visualize getting the lifting of the back end of the grand away for getting a dolly under.... Sure would save some backs!!!
pw
ps Thanks. I think I may get a Horse for myself here in the shop.. It looks real good. any pics of your shop built thing?
How was natonal?
pw
"Ward & Probst, Inc" <wardprobst at wardprobst.com>
Sent by: caut-bounces at ptg.org
06/25/2008 02:34 PM
Please respond to
College and University Technicians <caut at ptg.org>
To
"'College and University Technicians'" <caut at ptg.org>
cc
Subject
Re: [CAUT] piano moving stuff
Hi Paul,
Use the Horse all the time and love it. The only problem may be combining the two. It looks like the Grand Chariothttp://www.premiermovingequipment.com/ may be raised off the ground a bit and the Horse is designed to take the piano to the ground. I use something similar to the GC that is shop built and it requires more care to use it in combination with the Horse. Looks like the GC is designed for those who use the lyre for turning.
DP
Dale Probst, RPT
Midwestern State University
-----Original Message-----
From: caut-bounces at ptg.org [mailto:caut-bounces at ptg.org] On Behalf Of Paul T Williams
Sent: Wednesday, June 25, 2008 12:28 PM
To: caut at ptg.org
Subject: [CAUT] piano moving stuff
Hi all
I hope your time in Anaheim was good for all!
We have a professor here who is going to be "on the road" with her Yamaha C-7 this fall. she asked me about piano moving stuff and mentioned the piano horse (janssen) and something called a "grand chariot" which looks more like a skidboard with wheels.
Have any of you used these things? Are they worth the money? (she has a grant to buy said items) Anything better out there?
Thanks in advance
Paul
-------------- next part --------------
An HTML attachment was scrubbed...
URL: https://www.moypiano.com/ptg/caut.php/attachments/20080701/a83f87b9/attachment-0001.html
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Turning T2 - Copy.jpg
Type: image/jpeg
Size: 21746 bytes
Desc: not available
Url : https://www.moypiano.com/ptg/caut.php/attachments/20080701/a83f87b9/attachment-0001.jpg
