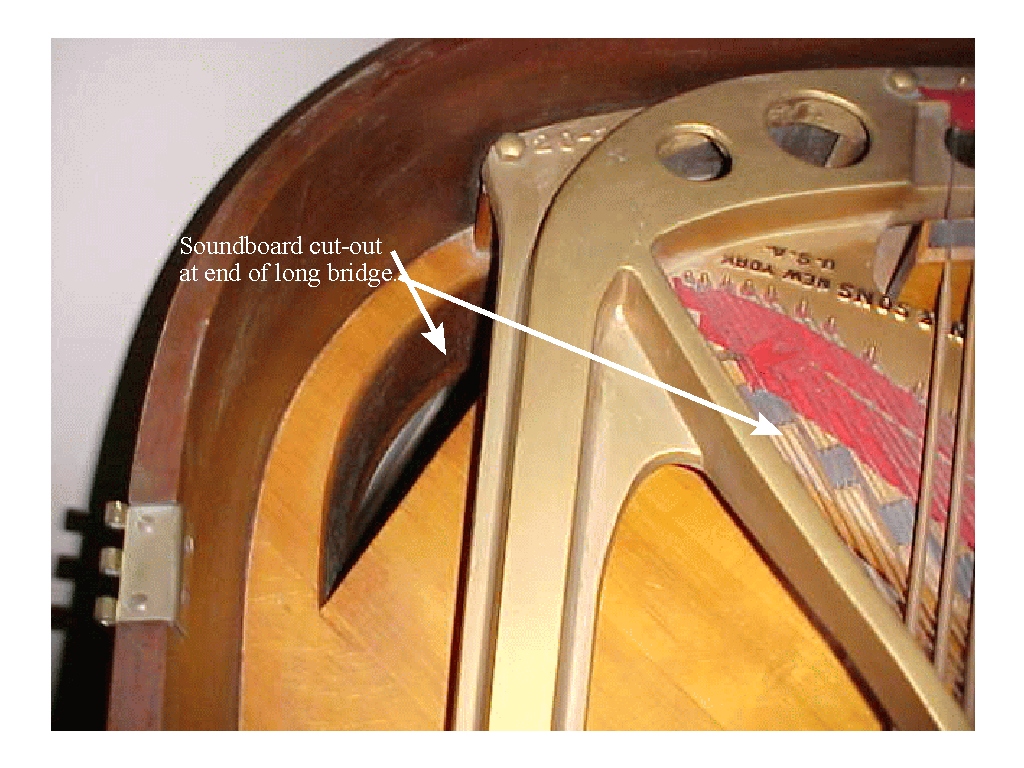

That cutout for the float was to alleviate a problem they would otherwise have had with a tenor bridge that ended up way too close to the inner rim. Ddf (PS. I did not take this picture-I don't recall who sent it to me but I'm glad to have it.) Delwin D Fandrich Piano Design & Fabrication 6939 Foothill Court SW, Olympia, Washington 98512 USA Phone 360.515.0119 - Cell 360.388.6525 del at fandrichpiano.com <mailto:del at fandrichpiano.com> - ddfandrich at gmail.com From: pianotech-bounces at ptg.org [mailto:pianotech-bounces at ptg.org] On Behalf Of Tom Driscoll Sent: Saturday, September 29, 2012 12:38 PM To: pianotech at ptg.org Subject: Re: [pianotech] Keep Mehlins Weird I did have some pics of a small 1930's Mehlin grand but lost them with a machine crash. Anyway , floating bass and ribs that are full thickness at the rim and taper to about 3/8" in the middle. This piano is in poor shape so a judgement on the success of these designs was clouded but it's interesting to see none the less. Chickering , Mehlin and a few others had true R and D it seems. Tom D. -------------- next part -------------- An HTML attachment was scrubbed... URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120929/b7433864/attachment-0001.htm> -------------- next part -------------- A non-text attachment was scrubbed... Name: Cut-out At End Of Tenor Bridge.jpg Type: image/jpeg Size: 432519 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120929/b7433864/attachment-0001.jpg>
