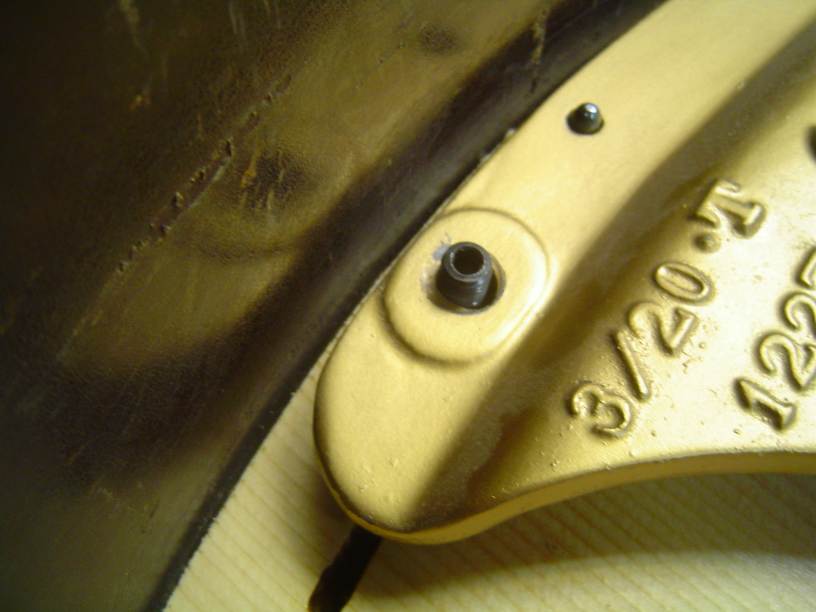

On 5/29/2012 2:47 PM, Gene Nelson wrote: > If I get this right the existing plate screw holes get plugged and > re-drilled for the 4" socket set screws. Yes. >The new board at the screw > locations is counter sunk to accept the serrated flange nuts (are > these the lock variety) that are set deep enough to not interfere > with plate height. Only I don't use a serrated flange nut, just a lock nut. Plate holes are all sorts of different sizes and in Steinway's case, all sorts of different shapes and generally huge. I plug the existing holes in the plate with a mix of epoxy, colloidal silica, and iron filings swept up from the plate modifications, and re drill them. Photo attached. >Are the shoulders oriented up to support the > plate? Yes. >Lock tite applied? Yes. >I suppose that nut and set screw need to > turn together to make adjustment? They had better if you want it to adjust, yes. >The socket screws are adjusted from > above with Allen wrench and set high enough above plate to accept > acorn nuts. Yes. Ron N -------------- next part -------------- A non-text attachment was scrubbed... Name: new bolt hole.jpg Type: image/jpeg Size: 41963 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120529/92a873ae/attachment.jpg>
