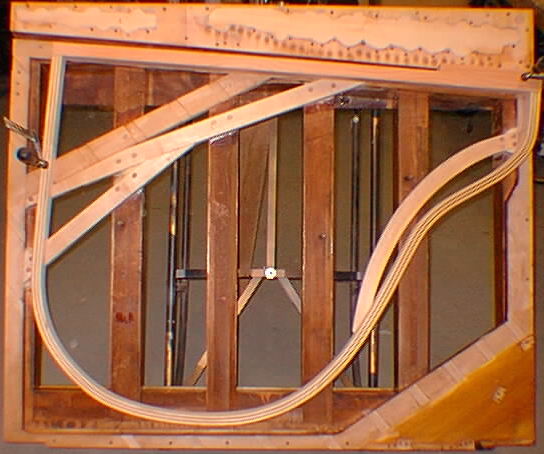

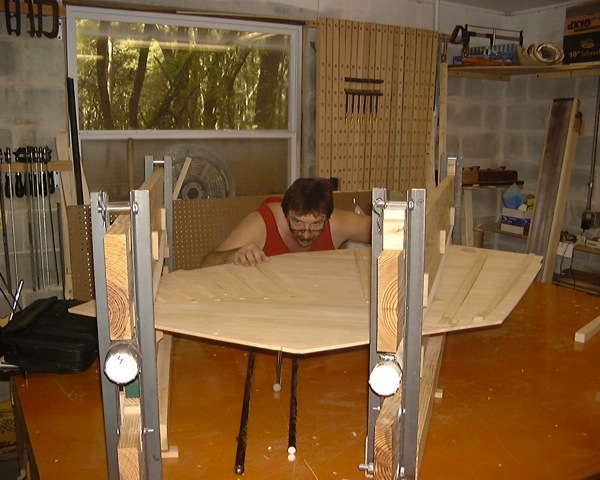

I have more pictures of this piano being built, but they are buried - if you have more questions, ask away and I'll try to find what I can. Below is picture of the panel being ribbed. At the right edge is the bottom of the soundboard. You can see the bottom-most rib is parallel with the bottom board of the piano and after installation, a cut was made on the lower side of that rib to free up the bass. Below is a pic of the M&H rim/back after modification. Sorry for the confusion, but the laminated structure (striped) that is clamped to the M&H frame is a faux inner rim of a Baldwin M grand. I did that in an effort to show how the Z-Bar shapes the upright soundboard active area to just about exactly the dimensions of a comparable size grand piano after modification with a fish. As you can see, a 52" upright is a slightly larger piano (soundboard-wise) than a 5'4" grand. Terry Farrell On May 18, 2012, at 2:20 AM, Gene Nelson wrote: > Added a few mono chords to the bass bridge? > Can't figure how the two bridge shaped structures above the bass bridge function? > Is it a leg that defines the greater Z structure? > > Sent from my iPhone > > On May 17, 2012, at 9:07 PM, "Delwin D Fandrich" <del at fandrichpiano.com> wrote: > >> Yes, it is. That is part of the Z-Bar and “floating bass” design. >> >> ddf >> >> Delwin D Fandrich >> Piano Design & Fabrication >> 6939 Foothill Court SW, Olympia, Washington 98512 USA >> Phone 360.515.0119 — Cell 360.388.6525 >> del at fandrichpiano.com — ddfandrich at gmail.com >> >> From: pianotech-bounces at ptg.org [mailto:pianotech-bounces at ptg.org] On Behalf Of Gene Nelson >> Sent: Thursday, May 17, 2012 6:58 PM >> To: pianotech at ptg.org >> Subject: Re: [pianotech] S&S K(52) Restoration -------------- next part -------------- An HTML attachment was scrubbed... URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120518/004909f7/attachment-0001.htm> -------------- next part -------------- A non-text attachment was scrubbed... Name: Pdrm0007.jpeg Type: image/jpg Size: 100293 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120518/004909f7/attachment-0002.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: Feb21_26.jpg Type: image/jpg Size: 54174 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120518/004909f7/attachment-0003.jpg>
