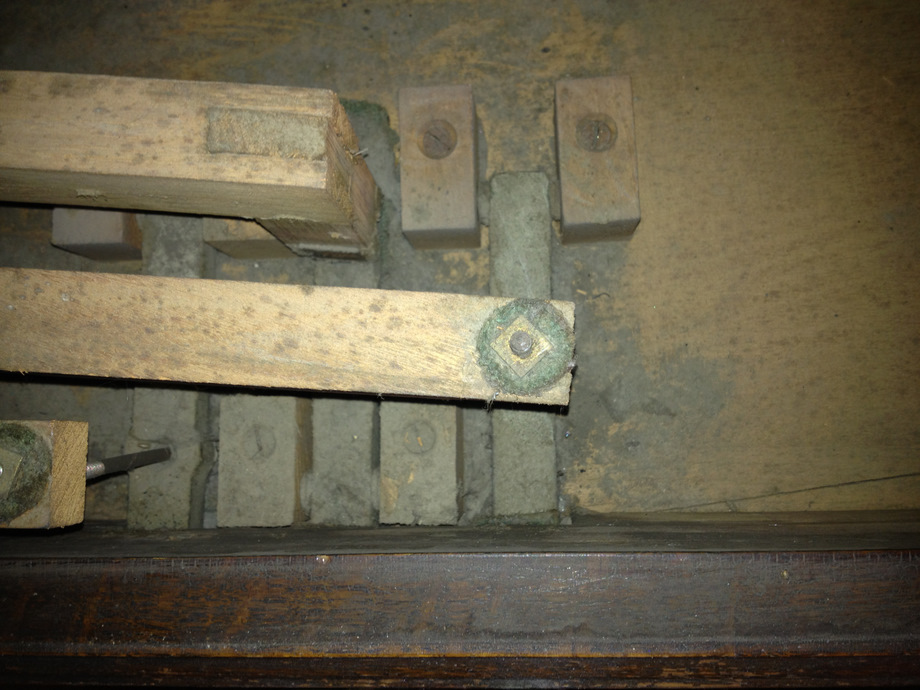

Hi Folks, I'm looking for a set of pedals for a WW Kimball BOU from 1904, #134594. The supply houses don't have anything of exactly this nature and I'd rather not have to retrofit pedals/linkages if possible. What I'm looking for are Three Pedals, Nickel/Chrome, 9-3/4" or 9-7/8" long overall All Three Pedals are 6" from the Horn to the Rear Edge of the Pedal, and 3-7/8" from the Horn to the Front Tip Right and Left Pedals are 5-5/8" from Horn to Center of Pedal Pin Right and Left Pedals Need about 3-1/2" from the Rear of the Pedal to the Hole for the Pedal Prop. Center Pedal is 2-1/4" from the Horn to the Center of the Pedal Pin Center Pedal does not have a hole for a prop. The trapwork comes to rest on the rear of the pedal which has a raised ridge to mate with a slot in the trapwork. I can fabricate a ridge if necessary. Any help? Isaac? See photos. Many Thanks, William R. Monroe -------------- next part -------------- An HTML attachment was scrubbed... URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120228/39b62cb1/attachment-0001.htm> -------------- next part -------------- A non-text attachment was scrubbed... Name: IMG_0128.JPG Type: image/jpeg Size: 206979 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120228/39b62cb1/attachment-0003.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: IMG_0132.JPG Type: image/jpeg Size: 228338 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120228/39b62cb1/attachment-0004.jpeg> -------------- next part -------------- A non-text attachment was scrubbed... Name: IMG_0137.JPG Type: image/jpeg Size: 183633 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120228/39b62cb1/attachment-0005.jpeg>
