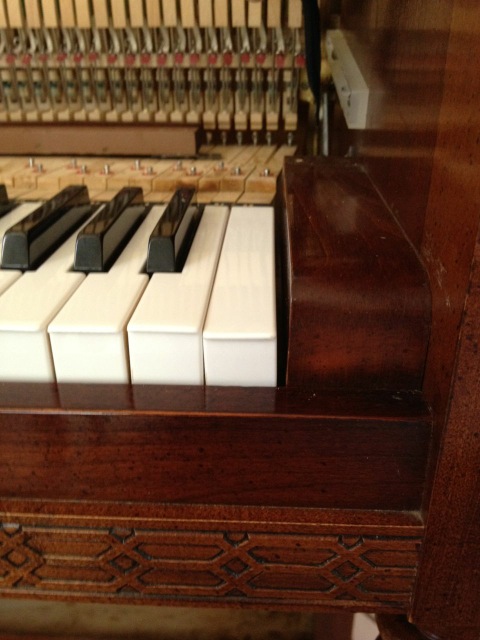

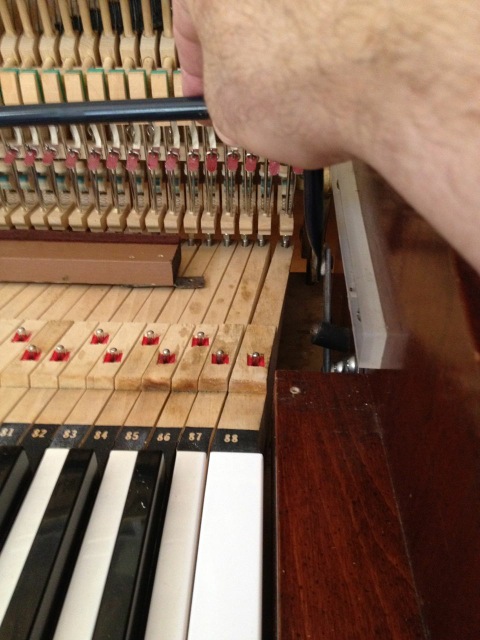

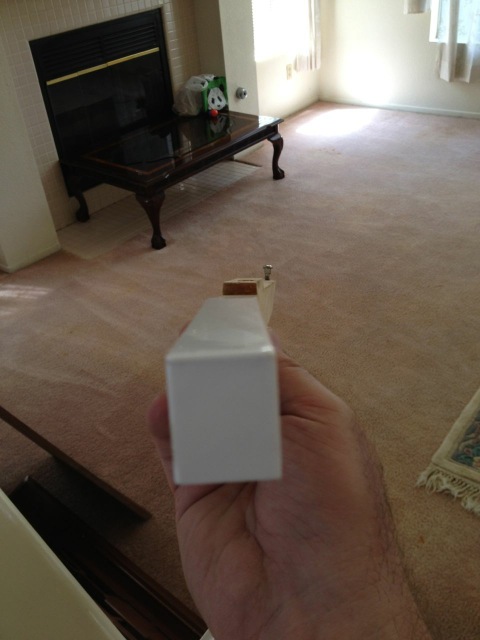

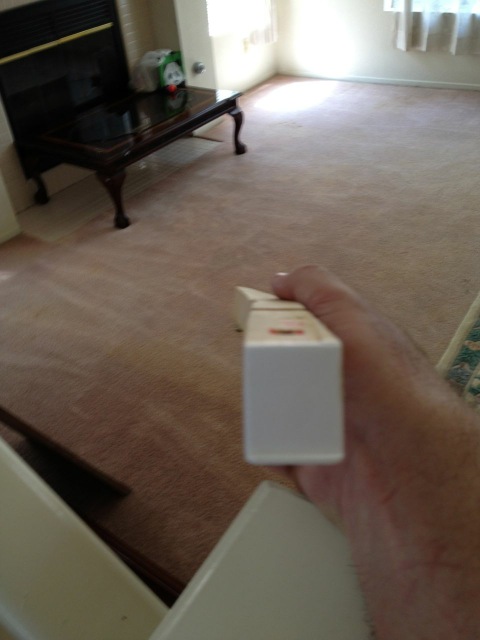

Greetings, I finished a bit of work (mouse cleaning, pitch raise, tuning, fixing broken wheels, etc.) on this piano but this one key (C8) was sticking when pressed. I checked all the usual culprits but nothing seemed to have any effect. That's when I noticed that the key stick was twisted. Not only twisted but the capstan end seems to be bent to the right further than all the other keysticks. I'm thinking it was a factory job because the last wippen is also skewed out to the side to match up with the bent keystick. The capstan even tilts at an angle while the key tilts the opposite way at the working end. The ironic thing is that this was the 125th anniversary edition (1987) of the Baldwin Hamilton. I think it said something about celebrating decades of excellence and quality... :-) So.... Does anyone have any hints on how to make this work? Any fix short of making a new key? It seems to be hanging up on the front rail pin because of the skewed angle. Moving the key side to side exhibits about 1-2mm of play, and the balance rail has some play, but the twist seems to have the 2 pins working in the opposite direction from each other. Also, C8 barely misses scraping on B7. See the 3rd picture down. Here's some photos... Thanks! Regards, Rob McCall McCall Piano Service, LLC www.mccallpiano.com Murrieta, CA 951-698-1875 -------------- next part -------------- An HTML attachment was scrubbed... URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120810/afbd3778/attachment-0001.htm> -------------- next part -------------- A non-text attachment was scrubbed... Name: IMG_2422.jpeg Type: image/jpg Size: 58124 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120810/afbd3778/attachment-0004.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: IMG_2423.jpeg Type: image/jpg Size: 64482 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120810/afbd3778/attachment-0005.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: IMG_2424.jpeg Type: image/jpg Size: 86471 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120810/afbd3778/attachment-0006.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: IMG_2425.jpeg Type: image/jpg Size: 95860 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120810/afbd3778/attachment-0007.jpg>
