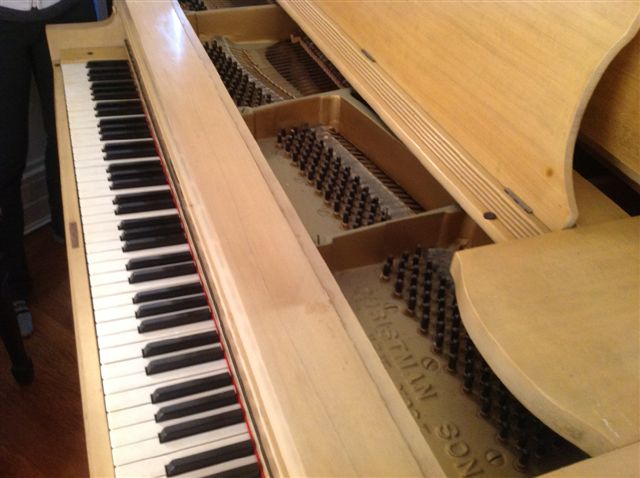

Yes it is interesting how things get abandoned and lost probably for the sake of manufacturing expediency. These types of bridges are clearly more trouble to make but probably with some real benefit. Here's a couple final pictures. The treble backscale is quite long without the tuned rear duplex aliquots and you can better see the angle in the capo section. I'd probably reduce the felt width and density behind the counterbearing bars to reduce drag there. Anyway, a potential project in the making. We'll see what happens. A piano where the value doesn't really justify the cost of redoing it but it may have the inherent design and structure to be quite a nice small piano (good set of ivory on it too!). A family heirloom so there's a chance. David Love www.davidlovepianos.com -----Original Message----- From: pianotech-bounces at ptg.org [mailto:pianotech-bounces at ptg.org] On Behalf Of Ron Nossaman Sent: Monday, April 23, 2012 3:48 AM To: pianotech at ptg.org Subject: Re: [pianotech] Chrisman Grand On 4/22/2012 11:27 PM, David Love wrote: > Here's a couple more pictures showing that the tenor aggraffe line has > already been slightly offset Very good! No tuned low angle duplex either. Can't tell how steep the angle is or how much pressure and drag the big felt acreage provides. >and a better picture of the entire length of > the backscale. Even some of those European loops would probably help back > there. Surely. It's terrific how much individuals have learned and implemented through the history of this industry, and sad how very little of the good stuff has survived in current production and general knowledge. But that's not just this industry either, is it. Good find. Ron N -------------- next part -------------- A non-text attachment was scrubbed... Name: Christman Treble backscale.jpg Type: image/jpeg Size: 50784 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120423/413ebf10/attachment-0002.jpg> -------------- next part -------------- A non-text attachment was scrubbed... Name: Christman capo section.jpg Type: image/jpeg Size: 55372 bytes Desc: not available URL: <https://www.moypiano.com/ptg/pianotech.php/attachments/20120423/413ebf10/attachment-0003.jpg>
