[pianotech] Lyon & Healy made in Holland

[tnrwim at aol.com]

Wim,


Is there a rectangular slot in the top of the vertical rod? If so, perhaps rotate the rod 90 degrees, and see if you can engage it in the slot of the horizontal mute rail support. Perzina uses a similar system today.


--Cy--

Looking at my picture again, and comparing it to yours, it look like this might work.

Thanks, Cy.




-----Original Message-----
From: Cy Shuster <cy at shusterpiano.com>
To: pianotech <pianotech at ptg.org>
Sent: Mon, Aug 1, 2011 6:04 am
Subject: Re: [pianotech] Lyon & Healy made in Holland


Wim,


Is there a rectangular slot in the top of the vertical rod? If so, perhaps rotate the rod 90 degrees, and see if you can engage it in the slot of the horizontal mute rail support. Perzina uses a similar system today.


--Cy--




Cy Shuster, RPT
Albuquerque, NM


www.shusterpiano.com
www.facebook.com/shusterpiano










On Jul 30, 2011, at 9:47 PM, tnrwim at aol.com wrote:


I just serviced a Lyon & Healy studio piano that says it is made in Holland. It looks to be about 10 or 15 years old. I didn't know there was a factory in Holland that made this. Anyone in Europe know about this piano factory?

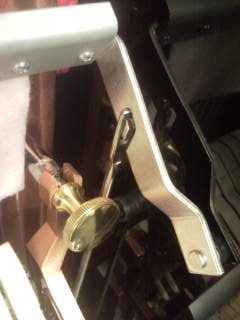

Anyway, attached are two pictures of the mute rail. As you can see, the mute rail is attached to the rod that goes down to the pedals with a piece of wire wrapped around it to two pieces to hold it in place. But that is not the way it was originally was made. In order to get it out, I had to undo two nuts in the bottom, where the rod is attached to trap bar.

What I am trying to find out is how those two pieces are supposed to be attached. It looks like it might be held together with a wing nut and bolt, but I can't be for sure. So if anyone has a Lyon & Healy Studio with a similar set up, please send a picture, or explain how it works.

Thanks

Wim Blees
Hawaii.



<L&H2.jpg><L&H_1.jpg>
