Hammer height gauge

[Jack Houweling]

Sorry I forgot to enter the subject.

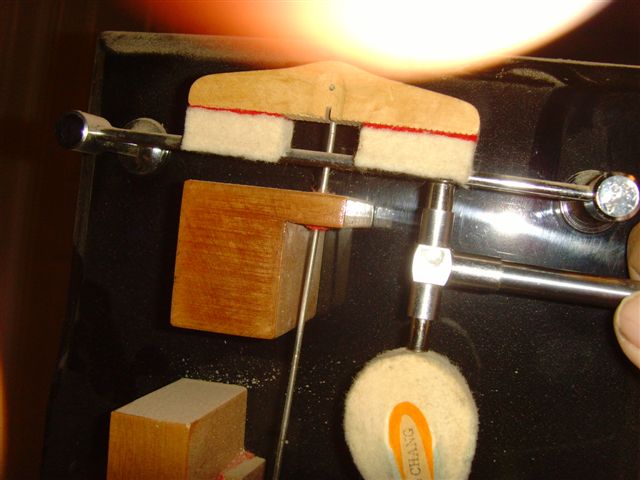

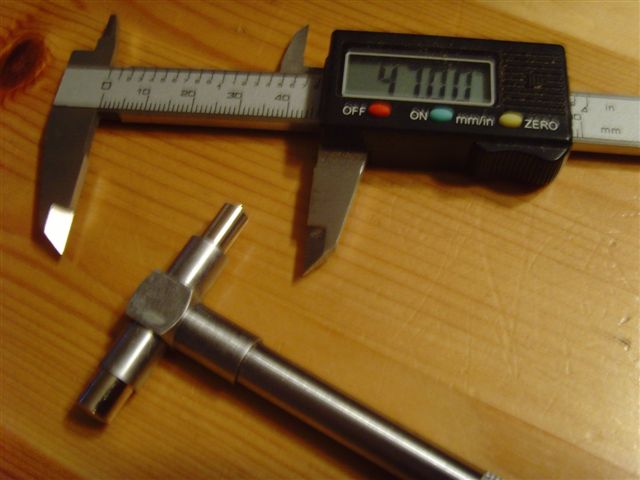

I found yet another way to check hammer height. The telescoping gauges are very easy to set desired measurement with a caliper
and then can be used to check blow distance. I use it on my regulating table and also in the piano.

Regards,
Jack Houweling
