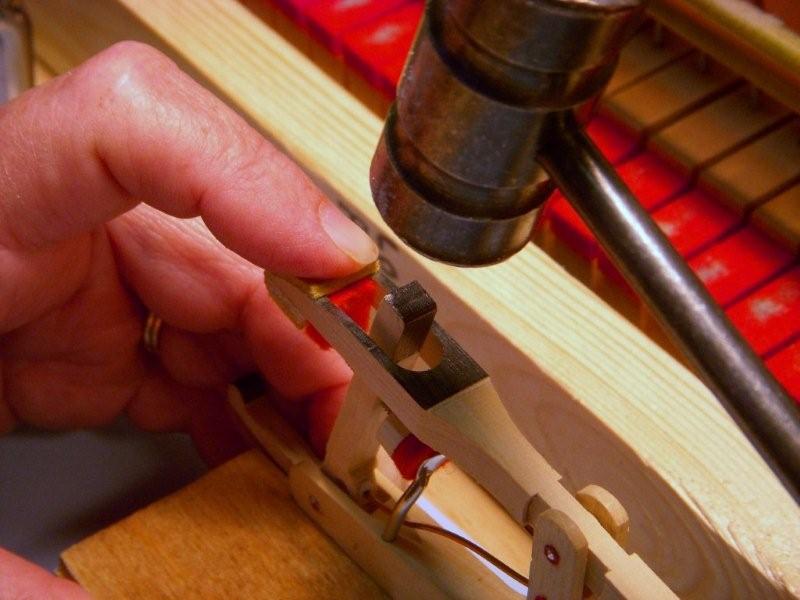

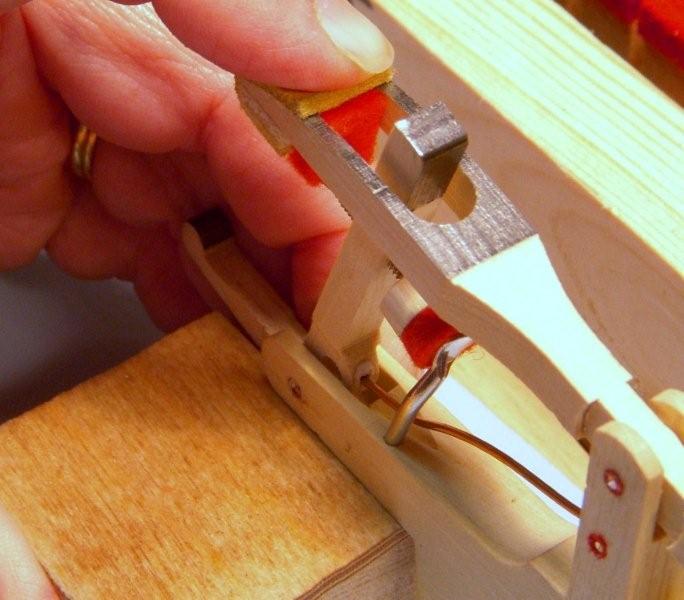

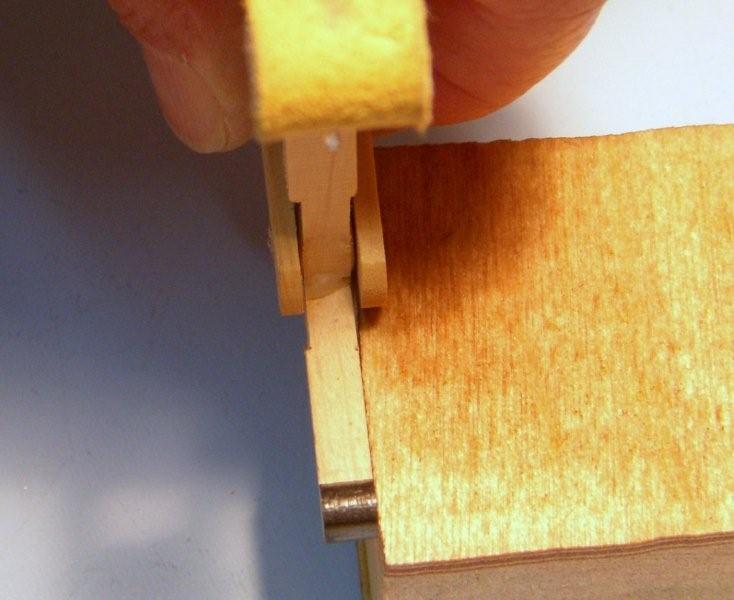

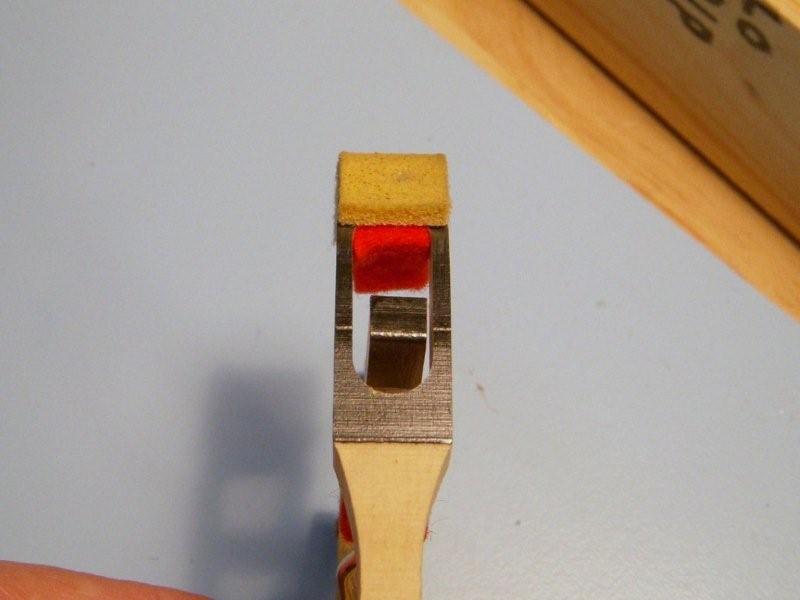

Hi, A while ago, someone was asking about centering jacks in the repetition lever (balancier) window. I just finished repinning a set of wippens and while I was putting them back on the rail, I noticed a couple I had missed centering (another duty done while repinning). picture 1: the off-center jack picture 2: the block of wood under the wippen support on the side the jack needs to moved toward picture 3: holding the parts in place ready for the hammer tap picture 4: the hammer, ready to go Obviously, this set-up is for parts not attached to the rail--which also made it easier for taking pictures. Enjoy. Barbara Richmond, RPT near Peoria, IL -------------- next part -------------- An HTML attachment was scrubbed... URL: https://www.moypiano.com/ptg/pianotech.php/attachments/20080527/1ade7277/attachment-0001.html -------------- next part -------------- A non-text attachment was scrubbed... Name: jack in window 4.jpg Type: image/jpeg Size: 58295 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20080527/1ade7277/attachment-0004.jpg -------------- next part -------------- A non-text attachment was scrubbed... Name: jack in window 1.jpg Type: image/jpeg Size: 36771 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20080527/1ade7277/attachment-0005.jpg -------------- next part -------------- A non-text attachment was scrubbed... Name: jack in window 2.jpg Type: image/jpeg Size: 49299 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20080527/1ade7277/attachment-0006.jpg -------------- next part -------------- A non-text attachment was scrubbed... Name: jack in window 3.jpg Type: image/jpeg Size: 54618 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20080527/1ade7277/attachment-0007.jpg
