Bass Bridge Position-upright

Fenton Murray fmurray at cruzio.com
Tue Mar 11 06:59:51 MST 2008


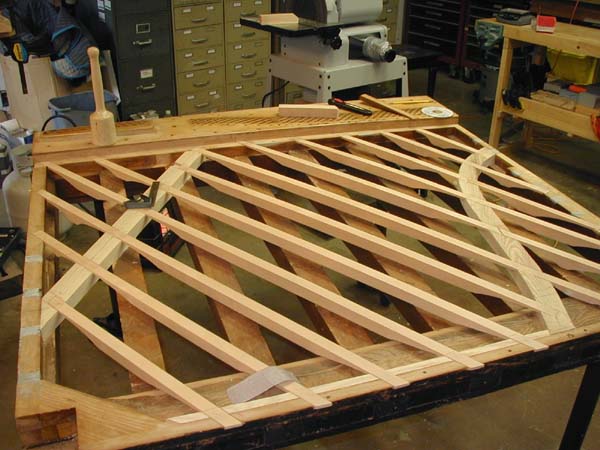

I think I attached the right photos. One shows the original rib lay out.
> is something like 5 or 6" away from the
> edge of the board
I put in a big cut off which to me signaled moving the bass bridge to get it
some distance from the new relocated soundboard liner.
This re-design was based on a photo of a Ludwig that Dale sent me that he
was impressed with, can't find that photo. I changed the scale with P-Scale
and let Arledge design the bass. I added 4 bi-chord wraps in the low tenor
to get the tension up there, it was terribly low. A transition would have
been a better way to go but I had to pull the plug somewhere. If I were
doing it again I'd use a transition bridge. This piano came out great, it
could have been better with more extensive action and key work. Also, I
think the board is to tight, my bad, but I'm looking forward to tuning it
again, it's been about 2 years, and see how it's settled in. The bass is
good though, I thinned the board quite a bit in that area and eased the rib
radius and dimension there, too. I'm sure I was able to hear the benefit of
these modifications in the bass, which is kind of the point of this post.
The client loves it, he grew up with the piano and is a good jazz player. I
could hear the great tone this piano once had before I tore it town, a very
loose and free tone. Tension was 40,000 and it still is.
The client paid me 10K for this project including an open grain refinish. I
think I gave him his moneys worth, saved his Grandma's piano, and learned
something while enjoying a fun woodworking project.
Fenton
----- Original Message -----
From: "Greg Newell" <gnewell at ameritech.net>
To: "'Pianotech List'" <pianotech at ptg.org>
Sent: Tuesday, March 11, 2008 5:42 AM
Subject: RE: Bass Bridge Position-upright


> Fenton,
> That's some nice looking work. Probably better than the old upright
> deserved. I'm curious. Why did you go for THAT MUCH backscale. My opinion
> would be that the backscale of those old monsters was long enough but the
> move to a directly contacting bass bridge would be a positive one. It
> seems
> from the picture that simply removing the cantilevered apron would still
> have put the bridge in a good spot. I can't really tell but it seems that
> the bridge, in its original spot, is something like 5 or 6" away from the
> edge of the board. Could you share more of your thought process in making
> these changes?
>
> All the best,
> Greg
>
> Greg Newell
> Greg's Piano Forté
> www.gregspianoforte.com
> 216-226-3791 (office)
> 216-470-8634 (mobile)
>
> -----Original Message-----
> From: pianotech-bounces at ptg.org [mailto:pianotech-bounces at ptg.org] On
> Behalf
> Of Fenton Murray
> Sent: Tuesday, March 11, 2008 1:14 AM
> To: Pianotech List
> Subject: Re: Bass Bridge Position-upright
>
> Attached are before and after of photos of a belly I did on an upright.
> Some
> might say I pushed the envelope to far in shortening the speaking length
> of
> the bass strings(they're probably right, but it's a way to learn
> something),
> the back scale is now huge. I did this with out much experience but I was
> very pleased with the bass. I think some loss of power as a trade off for
> a
> stronger fundamental might be an apt description as you put it David. The
> piano had horizontal ribs that I changed to a more traditional layout, I
> also added two large cut offs.
> Fenton
> ----- Original Message -----
> From: "David Love" <davidlovepianos at comcast.net>
> To: "'Pianotech List'" <pianotech at ptg.org>
> Sent: Monday, March 10, 2008 7:54 PM
> Subject: RE: Bass Bridge Position
>
>
>> JD
>>
>> The reason for the 6 note transition I just outlined in another post
>> so I won't rehash that.
>>
>> I'm not terribly enamored of the low bass on the O and I still find
>> the tenor/bass transition (as on virtually all Steinways) to be a
>> problem.  In the low bass I prefer a clear fundamental unmuddied by
>> unwanted strong upper partials.  The O in its original form does have
>> power though it's a bit too gnarly for me and lacking a clear
>> fundamental.  While I have been able to achieve a better sound which
>> scale changes such as reducing the core wire diameters, the short
>> backscale length and possibly the cantilever seem to contribute to the
>> lack of clarity and weak fundamental in the low bass.
>> The
>> filtering of the low fundamental that the extended cantilever
>> contributes has been discussed by those with better theoretical
>> knowledge than I have and at this point my conversion to a straight up
>> bass bridge is based a bit on faith and my own experience with such
>> changes.  Power is really secondary for me in this case.  If I can
>> have balance and continuity through the scale, I'm willing to
>> sacrifice a bit of power.
>>
>> Simple changes as you mention can be made to the O to make it acceptable.
>> In this particular project I was looking for something a bit different.
>>
>> David Love
>> davidlovepianos at comcast.net
>> www.davidlovepianos.com
>>
>> -----Original Message-----
>> From: pianotech-bounces at ptg.org [mailto:pianotech-bounces at ptg.org] On
>> Behalf Of John Delacour
>> Sent: Monday, March 10, 2008 1:21 PM
>> To: Pianotech List
>> Subject: RE: Bass Bridge Position
>>
>> At 20:01 -0700 9/3/08, David Love wrote:
>>
>>>My scale experiments suggest that this scale looks a bit better with
>>>12 or 13 monochords in the bass instead of 10.  I'd be curious to know
>>>how many notes on your transition and what the speaking lengths at the
>>>beginning and end were.
>>
>> If I were doing what you're doing I would take the singles up to note
>> 13 or possibly, given the reduction in speaking lengths that your
>> modification entails, to note 14.  I don't see any point in having
>> more than 4 notes in the transition.
>>
>> I'm curious to know why you think an improvement can be made to the
>> performance of the O by such a shortening of the bass bridge lengths.
>> Certainly the bass lengths are long for a 5'10" piano and this is
>> achieved partly by rather short tail lengths on the bottom notes, but
>> I've always thought the performance of the bottom notes on the Model O
>> was rather remarkable left just as they are, including the apron, with
>> extraordinary shaking power.  You are going to replace this with a
>> straight-down bridge and presumably be using double-covered strings
>> throughout the singles.  On this piano I would do neither.  If I were
>> going to get rid of the apron I would substitute an angled bridge and
>> I might well still use single-covered singles.
>>
>> I consider the O, for all its faults, a pretty well-balanced piano,
>> with a bass that, with simple changes to the bass strings (as
>> discussed in another thread) has the character I find suitable for
>> this piano.
>>
>> JD
>>
>>
>>
>>
>
>
>
>
