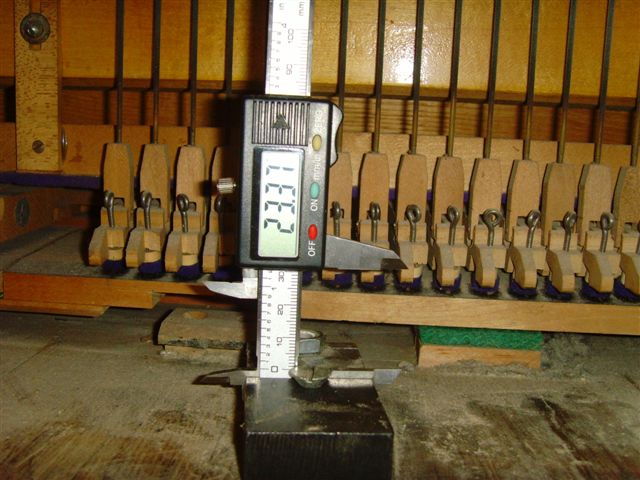

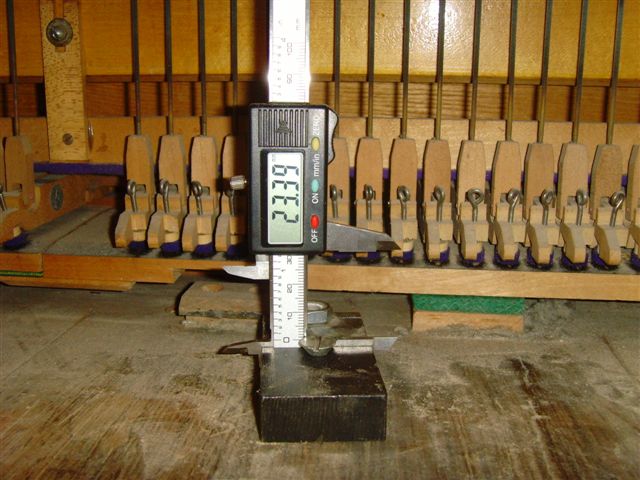

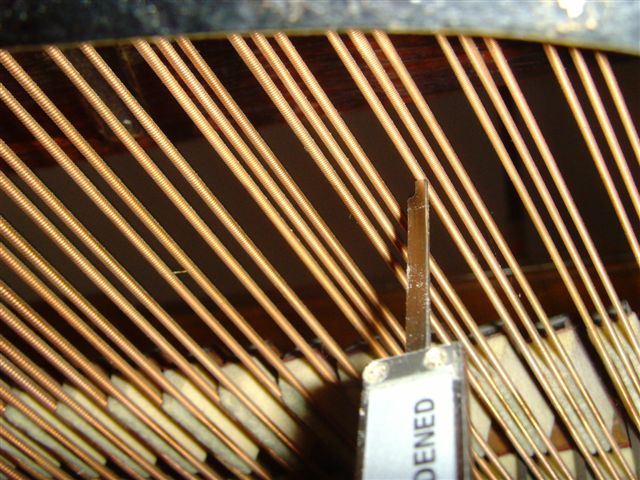

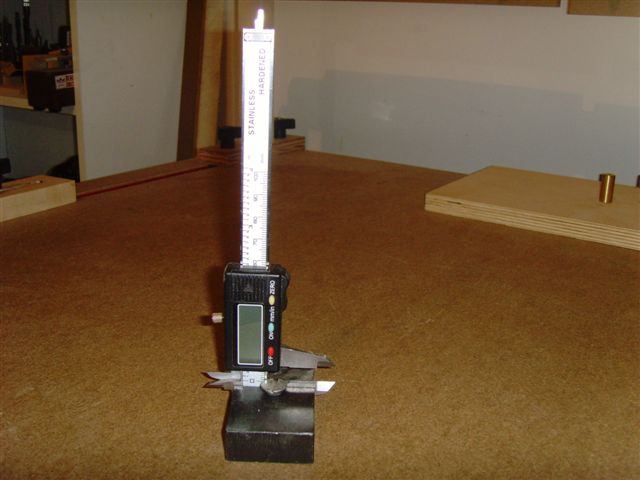

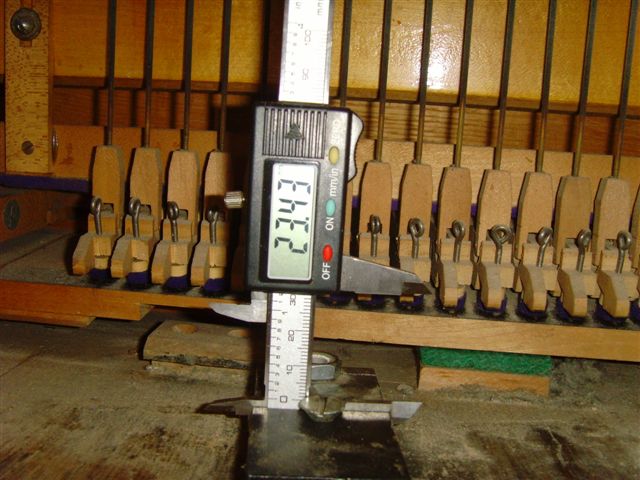

Sorry I forgot to put a Subjet /Title Hello All, I wanted to measure string height so I came up with a new gauge. It is very precise and also gives a reading of the string level. The three measurements shown are of the same note. I simply mounted my 4 inch caliper onto a base and I used a machine screw to hold it secure. With a simple turn of the screw it can be taken apart. I can take an average or measure individual strings. The digital readout is easy to record the distance and move on to the next with out taking the gauge out of the piano. Cheers, Jack Houweling -------------- next part -------------- An HTML attachment was scrubbed... URL: https://www.moypiano.com/ptg/pianotech.php/attachments/20080723/2cb1fa94/attachment-0001.html -------------- next part -------------- A non-text attachment was scrubbed... Name: july 23.08 026.jpg Type: image/jpeg Size: 41615 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20080723/2cb1fa94/attachment-0005.jpg -------------- next part -------------- A non-text attachment was scrubbed... Name: july 23.08 002.jpg Type: image/jpeg Size: 66946 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20080723/2cb1fa94/attachment-0006.jpg -------------- next part -------------- A non-text attachment was scrubbed... Name: july 23.08 003.jpg Type: image/jpeg Size: 68322 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20080723/2cb1fa94/attachment-0007.jpg -------------- next part -------------- A non-text attachment was scrubbed... Name: july 23.08 004.jpg Type: image/jpeg Size: 67271 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20080723/2cb1fa94/attachment-0008.jpg -------------- next part -------------- A non-text attachment was scrubbed... Name: july 23.08 023.jpg Type: image/jpeg Size: 87419 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20080723/2cb1fa94/attachment-0009.jpg
