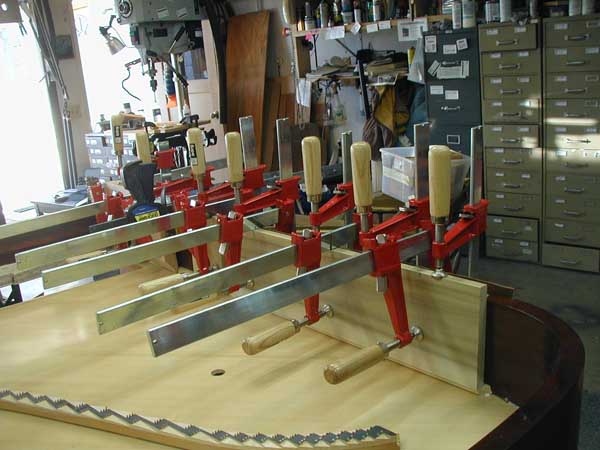

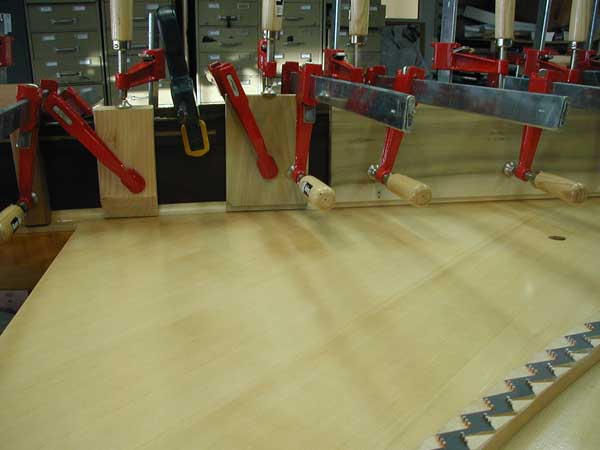

Same idea, different shop. Edge of cauls are treated with router to give same profile as quarter round. I did both sides to make them reversible and so you can see under a little easier to check glue joint and for clean up. Fenton ----- Original Message ----- From: "David Love" <davidlovepianos at comcast.net> To: "'Pianotech List'" <pianotech at ptg.org> Sent: Wednesday, January 09, 2008 6:49 PM Subject: Re: Sound board trim jig/ panel press Dale: Attached is a crude photo. The photo is of a 2x4 (couldn't find my 1x4s), and I didn't have any quarter round but you can see where it goes. After this set up just tap down the block until it snugs the quarter round down. The 45 degree cut pushes it down on the board and into the side of the case at the same time. Of course, the other thing you can due is just screw and glue down a flat piece of maple about 1/4 - 1/2" thick and 1" wide or so. That's the easiest. David Call me dense.. Got a picture? I'm Having a hard time visualizing something that is no doubt simple. Brain fade. How bout a beer. Uh huh Dale That works but an easier method is to just cut the bottom of a short piece of several 1x4s at a 45 degree angle. Clamp them lightly to the inside of the case right over the trim with the 45 degree angle facing toward the trim. Then with a mallet tap the 1x4s down until they squeeze the trim into the panel and the side of the case. Protect the inside of the case, if you need to, with a thin piece of felt. David Love davidlovepianos at comcast.net www.davidlovepianos.com -------------- next part -------------- A non-text attachment was scrubbed... Name: qtrrnde.jpg Type: image/jpeg Size: 57165 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20080110/fd6b72ee/attachment-0002.jpg -------------- next part -------------- A non-text attachment was scrubbed... Name: qtrrnd2e.jpg Type: image/jpeg Size: 78699 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20080110/fd6b72ee/attachment-0003.jpg
