SV: Re: SV: Odd pin block

[Aras]

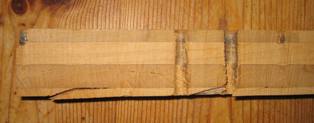

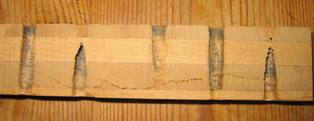

Just for information here are 2 photos of what is left of a block from a S&S B (1979). The pins had been punched down and the lower parts broke loose. Unfortunately, the tuner were not aware of the partly drilled process.
Kaj.

Aras <aras6310 at yahoo.se> skrev: S&S Hamburg drills twice.
Kaj.

A440A at aol.com skrev:
<< > There are manufacturers who did/do not drill through the block and

> others who drill first a small hole all the way through and then drill

> the right dimension partly through the block.  >>

Ron asks:

>>What manufacturers do this? >>

       I think "did" would be the more proper tense.  I have only seen this
on older models.  I have seen it on a Hagspield and a Wolfframm.  these were
both older German pianos.

Ed Foote RPT
http://www.uk-piano.org/edfoote/index.html
www.uk-piano.org/edfoote/well_tempered_piano.html



**************************************
