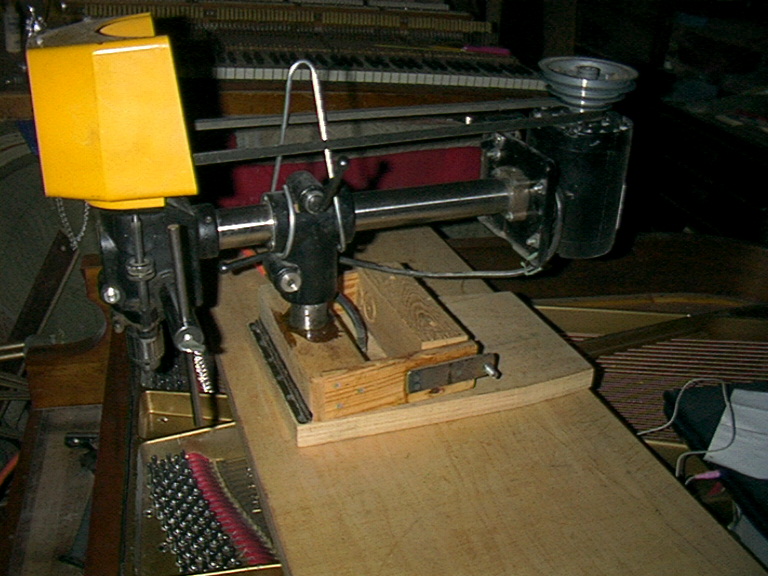

> Ron, > is it possible to send us a picture of your drilling set up? This is it. A radial drill press on a compressed air floated platform. Squeeze the air valve, and the the thing moves with very little effort to position the drill. Release the valve, and it sits solidly on the plank for drilling. Like most of my jigs and shop made tooling, it's ugly but effective. Ron N -------------- next part -------------- A non-text attachment was scrubbed... Name: drill1.jpg Type: image/jpeg Size: 189064 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20070526/94c8c739/attachment-0002.jpg -------------- next part -------------- A non-text attachment was scrubbed... Name: drill4.jpg Type: image/jpeg Size: 191141 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/20070526/94c8c739/attachment-0003.jpg
