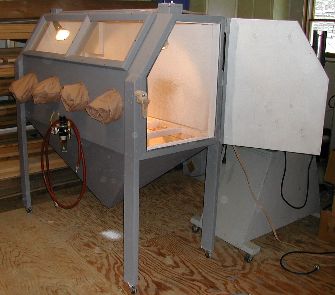

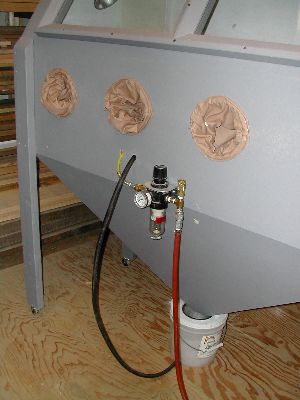

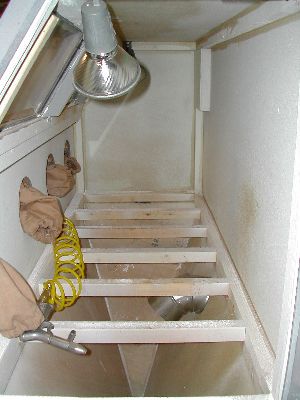

---------------------- multipart/mixed attachment The topic of bead blasting has been well covered in the archives and the journal. I simplified a few details on my cabinet, if you are interested. Photos attached are low resolution. I can send you more detailed photos individually by request. What I did differently: Instead of a metal frame, I used 2x2s. Instead of 3/4 ply, I used 1/4 for front, back, top, and larger sloped bottom pieces, but 3/4 for the smaller side slopes and the door. Cutting the thicker ply at a compound angle for the smaller sides gives good glue surface and eliminates fancy wood blocking in the corners. I purchased the smallest blasting outfit available and tossed the sand hopper. I used the siphon fitting, hose, and gun, and added a small bucket with a strainer screen under the bottom of the cabinet. Easy to store, easy to change media, easy to build. Instead of a shop vac, which is loud and recirculates the air back into the shop, I used a blower and dryer duct to suck out the dust and exhaust it to the exterior of the building. I used a 3/4 ply door with foam weatherstrip, held shut snuggly by a wooden cam latch I shaped with my bandsaw. Simple, cheap, effective. The photo of the interior shows the 2x2 "joists" that support the work over the hopper. I have a piece of expanded metal that covers the 2x2s, but removed it so you could see the hopper. Any questions, let me know. Greg Graham __________________________________________________ Do You Yahoo!? Tired of spam? Yahoo! Mail has the best spam protection around http://mail.yahoo.com ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: bucketandregulatorlowrez.jpg Type: image/pjpeg Size: 28764 bytes Desc: bucketandregulatorlowrez.jpg Url : https://www.moypiano.com/ptg/pianotech.php/attachments/51/43/25/6c/bucketandregulatorlowrez.jpg ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: camlatchlowrez.jpg Type: image/pjpeg Size: 13677 bytes Desc: camlatchlowrez.jpg Url : https://www.moypiano.com/ptg/pianotech.php/attachments/72/f9/dc/b7/camlatchlowrez.jpg ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: exteriorlowrez.jpg Type: image/pjpeg Size: 27410 bytes Desc: exteriorlowrez.jpg Url : https://www.moypiano.com/ptg/pianotech.php/attachments/5d/84/ad/93/exteriorlowrez.jpg ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: interiorlowrez.jpg Type: image/pjpeg Size: 31904 bytes Desc: interiorlowrez.jpg Url : https://www.moypiano.com/ptg/pianotech.php/attachments/76/16/d6/82/interiorlowrez.jpg ---------------------- multipart/mixed attachment--
