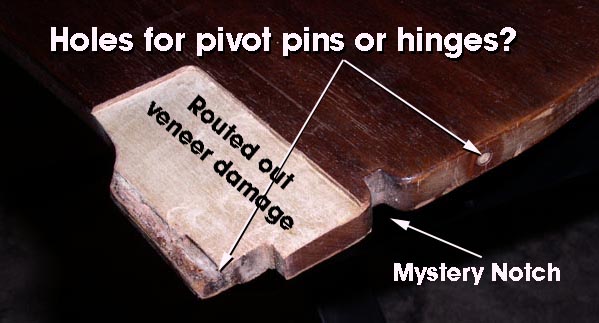

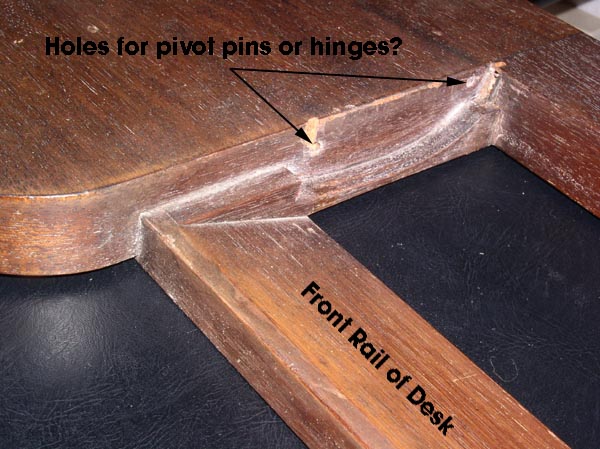

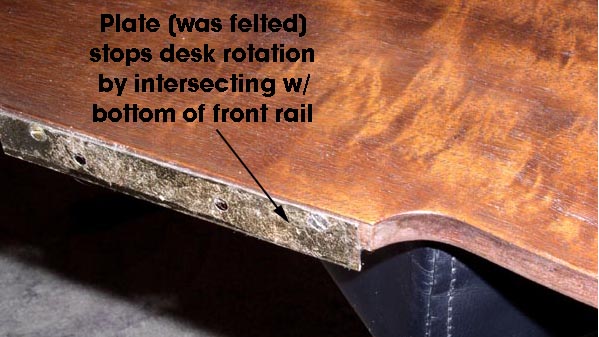

This is a multi-part message in MIME format. ---------------------- multipart/mixed attachment ------=_NextPart_84815C5ABAF209EF376268C8 I need to rebuild the music desk of an old chick quarter (can't find a serial #). I've attached three pics w/labels that I hope give a clear picture. Pic 1 shows the left pivot area of the desk frame. Pics 2 and 3 show the back side of the folding upright part. The original hardware was missing and replaced with a jury-rigged solution(?) by some tuner in the past. To fold the desk up, the upright part seems to need to fold down toward the player then slide back in the frame. Any ideas, sketches, photos of similar set-ups, and/or hardware suggestions would be most appreciated. Thankee kindly, Alan Barnard Salem, Missouri ------=_NextPart_84815C5ABAF209EF376268C8 An HTML attachment was scrubbed... URL: https://www.moypiano.com/ptg/pianotech.php/attachments/b1/97/c5/21/attachment.htm ------=_NextPart_84815C5ABAF209EF376268C8-- ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: QTR G Desk 1.JPG Type: image/jpeg Size: 99042 bytes Desc: QTR G Desk 1.JPG Url : https://www.moypiano.com/ptg/pianotech.php/attachments/19/be/0d/15/QTRGDesk1.JPG ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: QTR G Desk 2.JPG Type: image/jpeg Size: 59014 bytes Desc: QTR G Desk 2.JPG Url : https://www.moypiano.com/ptg/pianotech.php/attachments/75/06/6f/c2/QTRGDesk2.JPG ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: QTR G Desk 3.JPG Type: image/jpeg Size: 73259 bytes Desc: QTR G Desk 3.JPG Url : https://www.moypiano.com/ptg/pianotech.php/attachments/15/fa/8f/36/QTRGDesk3.JPG ---------------------- multipart/mixed attachment--
