Bridge Pin Angle

[Ric Brekne]

This is a multi-part message in MIME format.

---------------------- multipart/alternative attachment

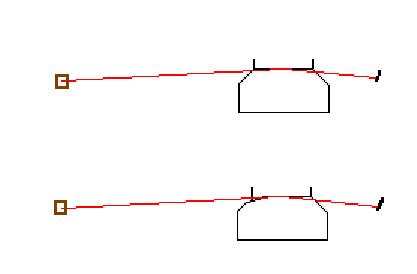

I see we still are talking past each other on this point a bit. Refer to
the two drawings inclosed.




Note that the red line is not a string. It is the triangle that is
formed by the three contact points... front and back string termination
and highest point on the bridge.

In the top drawing, the entire bridge surface is above the red line
going down to the termination. In the lower drawing the front
termination is below the red line.

The condition in the  lower drawing according to Rons idea is the only
one of these two in which it is possible to observe that strings are not
in  full contact with the bridge.  The notch is destroyed so that it is
not able to maintain contact with the string under any usual conditions.
Forcing the string to seat here will be quite temporary and cause more
damage. All fine and dandy.

However... the condition found in the top drawing can exist with strings
not in contact with the entire bridge surface as well. You just proved
it for one with your pulling experiment, tho if one actually goes out
and actively looks ... it is not particularly unusual.  How the string
gets up there is another matter,  but that it does is simply without
question. One need look no further then new pianos as I've said before.

A few points that are easily confirmed

--the dynamics of the system do not necessarilly bring the strings down
-- it is possible to measure that the string height relative to the top
of the bridge pin can decrease with increased humidity, which clearly
points to the string moving up the pin.
-- the strings can be slightly out of contact with all or part of the
bridge in spite of the condition in the top drawing.

You can go out and measure this and find plenty instances.  And all of
them are clearly in conflict with the idea that the only thing that is
happening is that the bridge surface is crushing and then retreating.

Baffling it may be. But it happens, and not unfrequently.  Why would
strings in the upper drawing case need seating ?? Because they climbed
the pins ??... grin.. yup.

Cheers
RicB
-------------

>/This is central to the whole line of reasoning that Rons <<theory>> rests
/>/on.   If there is positive bearing at all points on the bridge, and
/>/strings need seating, then Rons claims do no not hold.
/
I'm baffled by this.  If we're using bearing here in the sense of contact
between string and bridge cap, and there is contact everywhere across the
cap by the string, why would it need seating?  It's already seated.
