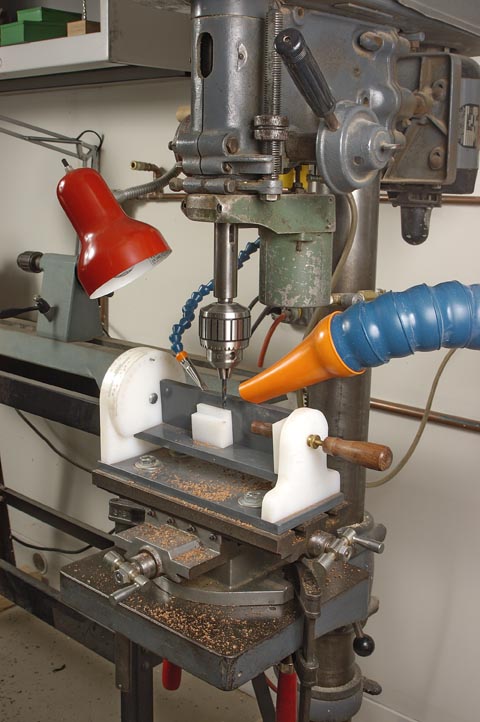

This is a multi-part message in MIME format. ---------------------- multipart/mixed attachment Philip, This is the one I use. It has a an air cylinder to advance the quill. You can control the rate of feed with a valve and you simply press the pedal (out of view on the floor plate) to drill the hole. Your see it here set up with my hammer boring jig. I don't need to clamp the hammer since both hands are free to hold it firm. I bought this delta 19" set up like this used (it's from the pre war era) from a tool dealer many years ago. If you can't find one set up like this you could modify an old drill press. I would stay away from the foot treadle ones. Everyone that I know that has one hates it. John Philip Jamison wrote: > Does anyone have a photo of a foot-operated floor-model drill press > set-up? I'd like to use one for hands-free pinblock drilling and wonder > how best to rig it. > > Philip Jamison > PA -- John Hartman RPT John Hartman Pianos [link redacted at request of site owner - Jul 25, 2015] Rebuilding Steinway and Mason & Hamlin Grand Pianos Since 1979 ---------------------- multipart/mixed attachment A non-text attachment was scrubbed... Name: Hammer Drilling 1.jpg Type: image/jpeg Size: 109702 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/be/66/ab/2d/HammerDrilling1.jpg ---------------------- multipart/mixed attachment--
