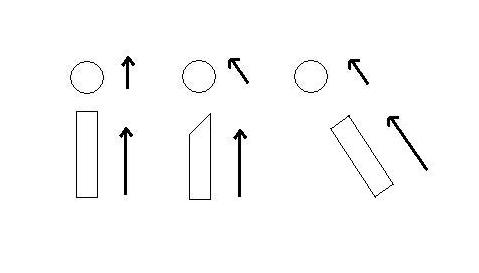

---------------------- multipart/alternative attachment Richard Brekne wrote: Hi Phil and Ron, I wanted to include an illustration with this bit that I forgot to paste when I sent it. [Image] Course there is a difference between the second and third drawings, anyone care to describe that ? > Phil wrote > The position of the jack relative to the hammer shank has no bearing on the direction of the force being applied at the jack contact point, just as the angle of the hammer head and hammer shank have no bearing on the direction of travel of the hammer strike point. > > It certainly does. It is in the end the jack that exerts force on the knuckle, and the angle formed between the jack top and the hammer shank line is the critical one. That the jack remains stable for most of the key stroke relative to the whippen center line (and is perpendicular to that line) allows you to disregard the jack and look only at the whippen center line... because that means the jack top is on that line. But this changes the minute you hit the jack tender, or better said.. the second you change the angle of the jack relative to the whippen center line. > > -- Richard Brekne RPT, N.P.T.F. UiB, Bergen, Norway mailto:rbrekne@broadpark.no http://home.broadpark.no/~rbrekne/ricmain.html ---------------------- multipart/alternative attachment --------------F0FDE23162DAACA5E7D355AD An HTML attachment was scrubbed... URL: https://www.moypiano.com/ptg/pianotech.php/attachments/75/d1/b8/a9/attachment.htm --------------F0FDE23162DAACA5E7D355AD A non-text attachment was scrubbed... Name: C:\\DOCUME~1\\RICHAR~1\\LOCALS~1\\Temp\\nsmailI4.jpeg Type: image/jpeg Size: 12146 bytes Desc: not available Url : https://www.moypiano.com/ptg/pianotech.php/attachments/91/7a/01/ee/nsmailI4.jpeg --------------F0FDE23162DAACA5E7D355AD-- ---------------------- multipart/alternative attachment--
