Hammer Shank Ratio

Ron Overs sec@overspianos.com.au
Fri, 14 Feb 2003 02:30:34 +1100


---------------------- multipart/related attachment
--============_-1166972259==_ma============
>Richard Brekne wrote:
>
>  >Folks
>>
>>I keep being bothered by the differing conventions for measuring the
>  >ratio of the hammer shank. . .>Below are a couple pictures showing
>a method of checking the hammer
>>shank ratio by measuring the weights involved. First is the SW and
>  >second is a difficult (but doable)  quantity to measure, the actual
>>weight of the hammer assembly at the knuckle. The flange is replaced by
>>an adapter to the Stanwood kit so as to achieve as solid and friction
>>free a measurement as possible. And the wood dowel used to contact the
>>knuckle is glued in place to tray so as to remove any influence from it
>>moving around. About 50 samples were taken, and compared to a 60 second
>>sampling under vibration.... the variation of the samples was at highest
>>80,4 grams and at lowest 73.1 grams. About 80 % of the samples were
>>right around 76 grams, and the average weight under vibration was at
>>about 75 grams, though as soon as the vibration was shut of the scale
>  >settled at 76.5... which ended up being the picture I took. . .>  All in all
>  >it seems pretty reasonable that in this case the established ratio is
>  >76.5 / 10.1 which gives a ratio of  7.57 for this hammer shank assembly.

Phil Ford replied:
>I'm not sure that I understand why you want to know this ratio.

Me either. The real figures which matter are the average hammer
movement with respect to that of the key front, and the average jack
tip movement with respect to the key front (this latter figure is
important in an action design for a sufficient speed of jack
escapement during the let off).

Terry Farrell came up with a very good practical method for measuring
hammer/key leverage ratio in one of his recent posts. He suggested
measuring the key travel and resultant hammer travel to derive the
ratio. Now this idea would seem to have considerable merit if you
have a dial guage on hand, since you could depress the key exactly 2
mm for example, and measure the resultant hammer movement quite
easily with a ruler. Makes a lot of sense to me Terry, the idea is
practically foolproof and you would get an answer in a very short
time.

Richard B, you are measuring a weight ratio, not a leverage ratio.
They are not quite the same thing unless the vectors are in the same
direction, and in the case of the experiment you conducted they are
not.

Phil Ford continued:

>Given the parameters that you've established I agree that this
>particular ratio is 7.57.  I question whether this is useful for
>anything.  When the shank is parallel to the scale platform and the
>support under the knuckle is vertical then this ratio is 7.57.  This
>doesn't represent a configuration of any real piano action so in
>what way is this useful?  In a real action the support for the
>knuckle is being applied perpendicular to a line between the whippen
>center and the whippen/knuckle contact point. So, when the hammer
>shank is horizontal, the force applied by the whippen at the contact
>point will be less than 76.5g since the moment arm, or lever arm, is
>21.64 mm - see D below, assuming that the contact point is on the
>magic line at this moment.  This number seems more relevant to what
>is happening in a real action.
>
>
>>   Now the interesting part of all this comes when you compare the
>>different conventions for finding the ratio by measuring lever arm
>>distances. Remember that whatever method is chosen simply must conform
>  >reasonably to the ratio established above.

Phil Ford continued:
>Why?
>
>>   So first .... some distances.
>>
>>--From center of hammer shank diameter to knuckle contact point 13 mm
>  >A) From middle of center pin to middle of hammer molding straight down
>  >the shank -- 136 mm
>  >B) From middle of center pin to center of gravity point on the hammer
>  >142 mm
>
>How did you establish this?
>
>>C) From middle of center pin to tip of hammer 148 mm
>>D) From middle of center pin to middle of knuckle molding -- 17.3 mm
>  >E) From middle of center pin to knuckle contact point 21,64 calculated
>  >as root (17,3^2 + 13^2)
>  >
>  >Now lets take a look at which convention most closely conforms to the
>>already established ratio.
>>
>>A/D = 7.86  (given by Vincent RPT)
>>B/D = 8.21  (discussed informally on the PTD list)
>>B/E = 6.56  (I ran into this one in Stockholm last year in informal
>>discussions)
>>C/E = 6.84  (given by Overs)
>>A/D = 6.28 (suggested by a technical editor informally in private
>>correspondence)
>
>
>I believe this last one was supposed to be A/E = 6.28.
>
>
>>Its quite obvious which one of these comes out best.

Yes quite obviously if you are interested in determining the weight
ratio of the hammer assembly only.

If you are particularly interested in the weight ratio with respect
to the hammer only, and you would like to derive a formula to reflect
the fact that you are deriving both weights with the hammer shank
positioned horizontally, then an appropriate formula might be:

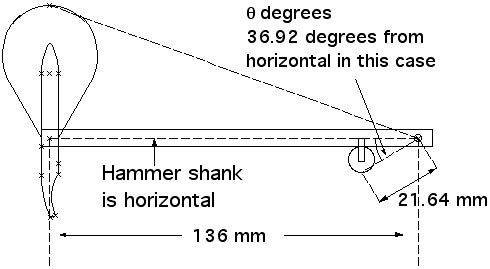

Where angle q (36.92 degrees) is the included angle between a line
from the knuckle contact point and the center pin and the horizontal.
(A/E)*(1/cos[q]) = 7.861

However, as Phil Ford mentioned in his post, the vector force of the
jack tip on the roller in a real piano action will not be the same as
your setup.



I have noticed that when calculating the hammer/key ratio by
measuring the lever lengths you will always get a larger figure than
that derived by weight. Only recently did I realise that this is
because the weight of the hammer head is bearing down on the end of
an almost horizontal hammer shank. Therefore the hammer weight is
bearing down on the hammer shank lever at approximately the distance
from the hammer center to the center of the hammer moulding (of
course this will vary somewhat throughout the hammer stroke). When
calculating the hammer leverage ratio using the (hypotenuse) distance
from the hammer center pin the hammer strike point, we will
necessarily get a larger figure since the tip of the hammer will
travel further relative to the key front when compared to the end of
the hammer shank.

I hope that makes sense. When our piano was exhibited at Reno, David
Stanwood made a calculation of the leverage ratio of the action using
his weighing method. He got a figure of 5.5:1. Now I designed the
action for this piano on CAD to have a ratio of 5.8 (at the strike
point). If you take the 5.8 ratio and multiply it by 130/138, you get
5.46. I believe this may explain the different figures arrived at via
the two different measurement systems.

So if you wish to arrive at a measured-lever-lengths figure for the
hammer/key ratio which agrees reasonably closely to the figures
derived by the Stanwood method, you could substitute the length from
the hammer center pin to the strike point with the length from the
hammer center pin to the center of the hammer moulding.

Ron O.
--
