C88 Hammer Position

[Newton Hunt]

This is a multi-part message in MIME format.

---------------------- multipart/mixed attachment
> Is it the right way? I have no idea. Probably not, but it has worked well
> enough for me that it hasn't changed much through the years.
>
> Ron N

Well, if Ron doesn't know then who is likely to?

I do the same except for one exception.  I stick the shank in the hole
and cut until it is a little short of where I think it should be.  I
then get the end of the shank wet with saliva (BIG toothpick) and then
set it in the hole, overly high then use a light tapping to move the
hammer down little bits at a time then make a small mark on the shank at
the butt.  When the tone gets worse I don't make a mark.  I pull it out
to the last mark then put CA in the butt hole to secure the shank in the
one perfect position (assuming it is perfect in all other respects).

If the hammer set is too soft to get a real good reading then I will use
a waste end hammer and dope it with CA.  It gets real hard real quick.
Do the same thing then set the next hammer up or down to the same height
then discard the CAed sample.

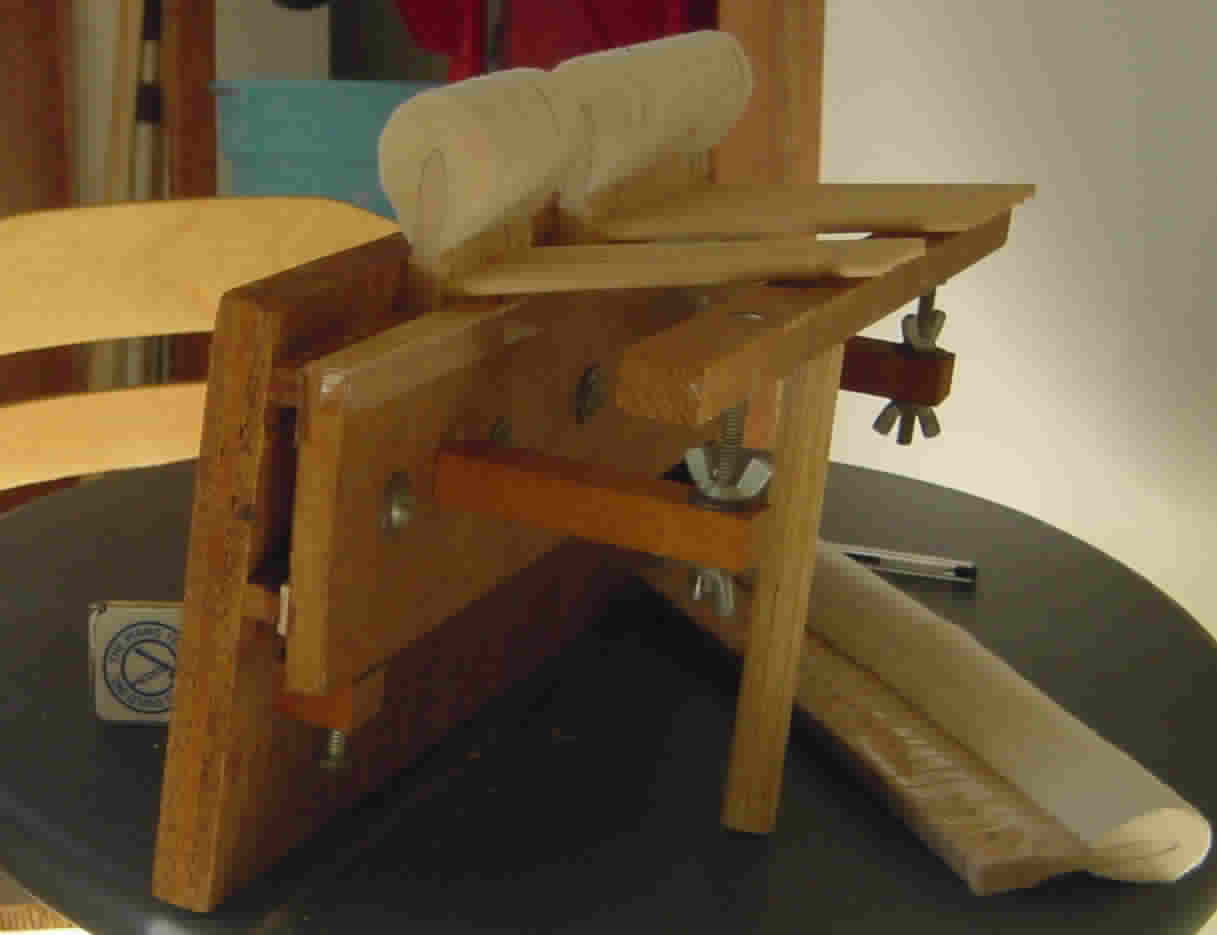

I have a fixture I made years ago that clamps the back end of the hammer
that has an arm to represent the angle of the shank to hammer molding.
Once it is set I can glue all the shanks in, one section at a time.  I
can also set the samples back into the clamp clamp the shanks and cut
the whole set off with a Mototool saw blade.

The fixture clamps in a bench vise.

Photo Attached.
