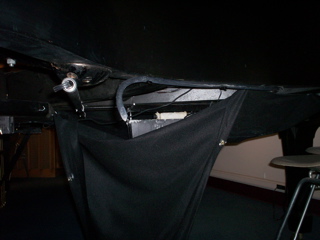

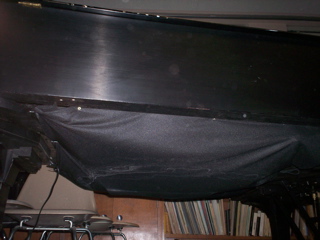

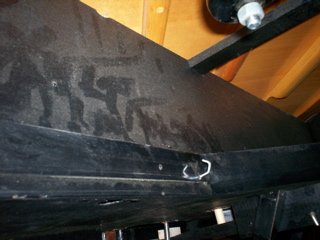

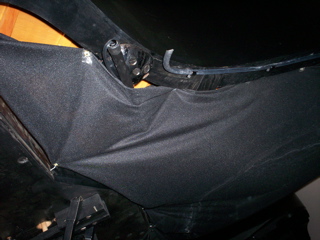

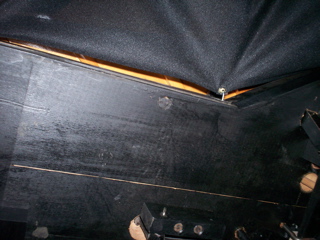

Hi all, Here are some pictures, as promised earlier, of my method of attaching an undercover, using hooks and grommets. It's the first such installation I ever did, and is an "under the beams" installation (before the new tanks which fit between beams), and with 48" (50w) rod (extends beyond the fabric - a neater job can be had with 38w, less wrinkling of fabric). Took me less than an hour to install, and really doesn't look too bad. I am better at it now, and can make a neater job of it for a fancy living room. This is in a faculty studio, and not at all in view. I was experimenting, and the grommets were added after a trial with tape, staples, and a hole. I find now that, with grommet squeezing pliers, I can just use the grommet to hold the fabric (create the "hem" and attach to the hook), and don't need the reinforcement of tape. The grommets in the picture were applied using a hammer, with punch and shaped anvil. The results were not very consistent, and it was much more time-consuming than pliers. $15 for the pliers was well worth the expense. Besides ease of installation. what I like about this system is ease of removal and replacement. Literally seconds to get it out of the way to service the tank and pads, and seconds to replace it. The observant among you might notice the tell-tale signs of over-filling the tank. I listen to the fill noise more carefully now. I manage to get two weeks between filling by maxing almost to the top of the tank. If anyone has questions, I'll do my best to answer, or perhaps take some different pictures. This was a hard set up for photography, as it is rather cramped (two B's next to each other), but it's the only undercover I have ready access to. The others I have installed are in private clients' homes. Regards, Fred Sturm University of New Mexico fssturm at unm.edu -------------- next part -------------- A non-text attachment was scrubbed... Name: 100_0001.jpg Type: image/jpeg Size: 49286 bytes Desc: not available Url : https://www.moypiano.com/ptg/caut.php/attachments/20060606/e9ba14f4/attachment-0006.jpg -------------- next part -------------- undercover1.JPG -------------- next part -------------- A non-text attachment was scrubbed... Name: 100_0002.jpg Type: image/jpeg Size: 43651 bytes Desc: not available Url : https://www.moypiano.com/ptg/caut.php/attachments/20060606/e9ba14f4/attachment-0007.jpg -------------- next part -------------- undercover2.JPG -------------- next part -------------- A non-text attachment was scrubbed... Name: 100_0003.jpg Type: image/jpeg Size: 47107 bytes Desc: not available Url : https://www.moypiano.com/ptg/caut.php/attachments/20060606/e9ba14f4/attachment-0008.jpg -------------- next part -------------- undercover3.JPG -------------- next part -------------- A non-text attachment was scrubbed... Name: 100_0004.jpg Type: image/jpeg Size: 33473 bytes Desc: not available Url : https://www.moypiano.com/ptg/caut.php/attachments/20060606/e9ba14f4/attachment-0009.jpg -------------- next part -------------- undercover4.JPG -------------- next part -------------- A non-text attachment was scrubbed... Name: 100_0005.jpg Type: image/jpeg Size: 39138 bytes Desc: not available Url : https://www.moypiano.com/ptg/caut.php/attachments/20060606/e9ba14f4/attachment-0010.jpg -------------- next part -------------- undercover5.JPG -------------- next part -------------- A non-text attachment was scrubbed... Name: 100_0006.jpg Type: image/jpeg Size: 49008 bytes Desc: not available Url : https://www.moypiano.com/ptg/caut.php/attachments/20060606/e9ba14f4/attachment-0011.jpg -------------- next part -------------- undercover6.JPG
