[CAUT] S&S D tenor dampers

Cy Shuster 741662027@theshusters.org
Sat, 30 Apr 2005 08:22:01 -0400


This is a multi-part message in MIME format.

---------------------- multipart/mixed attachment

------=_NextPart_001_0004_01C54D5D.AF0E89B0
After a recent vigorous concert on an S&S D, a low tenor damper was =
bleeding.  As it dropped onto the strings, it shifted to one side.  The =
problem turned out to be that one side of the "W" had folded over the =

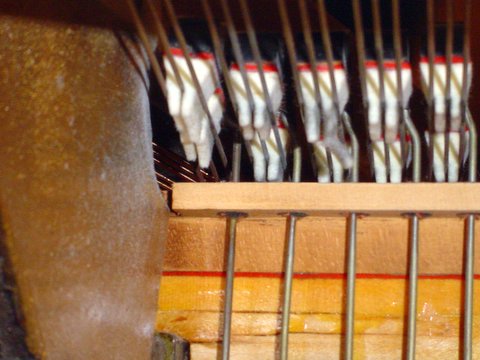

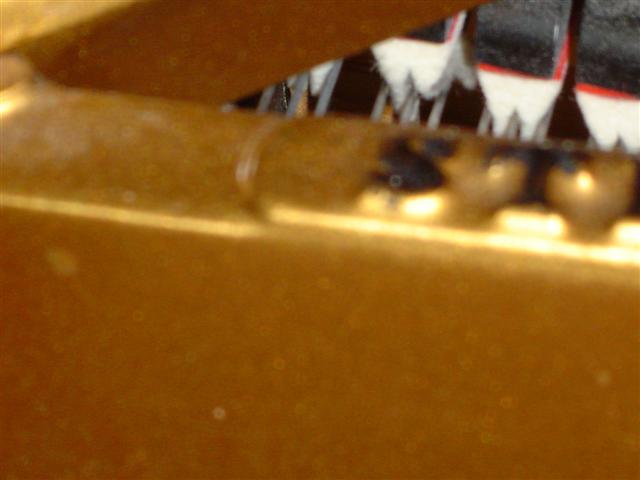

string (see picture).  I straightened it out, and then examined the =
situation from inside the action cavity (second pic).  The extended =
"tail" of the wedge was shredded.  It still wasn't damping right, so I =
went to trim it to match its neighbors.  The loose piece just pulled =
away in my fingers as I tried to cut it.

I've never seen dampers extending below the strings so far, but I =
suppose for low tenor on a D, that's what's necessary.  It looks like =
the fix is to replace that damper felt, right?  (At least the front half =
that was damaged).

It still rings a bit more than I'd like, but at least it drops straight =
onto the strings.  A tiny amount of added finger pressure does the =
trick.  I tried lowering the damper wire into its support block a bit, =
but then the sostenuto tab is too high.  Are there any short-term fixes =
for tomorrow's concert?

Thanks...

--Cy Shuster--
Bluefield, WV
