That dadgumed short SD-10 (grand truck detail)... part 3

Alan Crane alan.crane@wichita.edu
Wed, 07 May 2003 20:30:53 -0500


---------------------- multipart/mixed attachment

This is a Mason & Hamlin - CC.
It is quite a bit heavier than the Steinway-Ds.
The truck was fabricated in-house from 1.25" square steel tubing.
The bracing material is 3/8" steel, 2" wide.
(The caster & leg support material is 1/2" steel)

This truck has been in service for at least 25 years.
--
Regards,

Alan B. Crane, RPT
School of Music
Wichita State University
alan.crane@wichita.edu

---------------------- multipart/mixed attachment
A non-text attachment was scrubbed...
Name: Dscmod1.jpg
Type: image/jpeg
Size: 34099 bytes

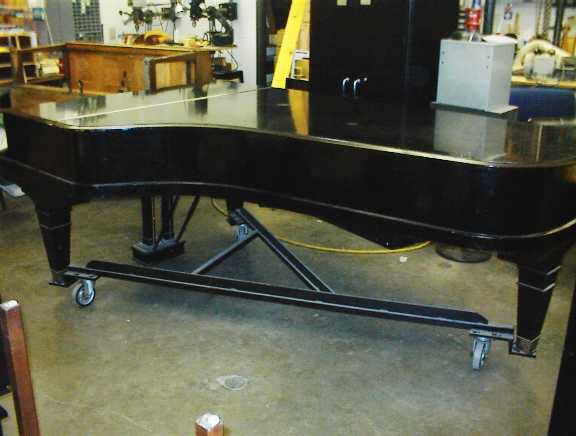

Desc: M&H-CC  #1
Url : https://www.moypiano.com/ptg/caut.php/attachments/7f/f4/aa/6c/Dscmod1.jpg

---------------------- multipart/mixed attachment
A non-text attachment was scrubbed...
Name: Dscmod4.jpg
Type: image/jpeg
Size: 40113 bytes

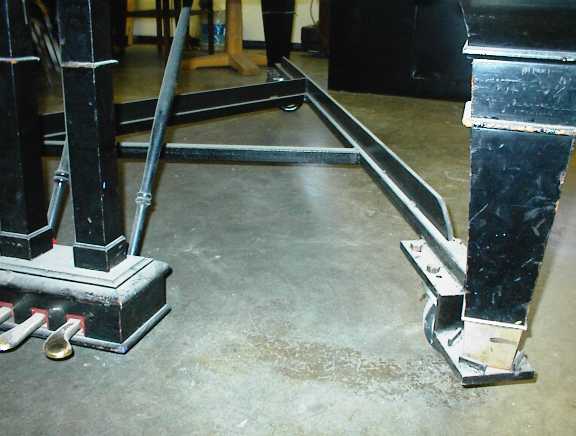

Desc: M&H-CC  #2
Url : https://www.moypiano.com/ptg/caut.php/attachments/5b/c1/30/15/Dscmod4.jpg

---------------------- multipart/mixed attachment
A non-text attachment was scrubbed...
Name: Dscmod5.jpg
Type: image/jpeg
Size: 28798 bytes

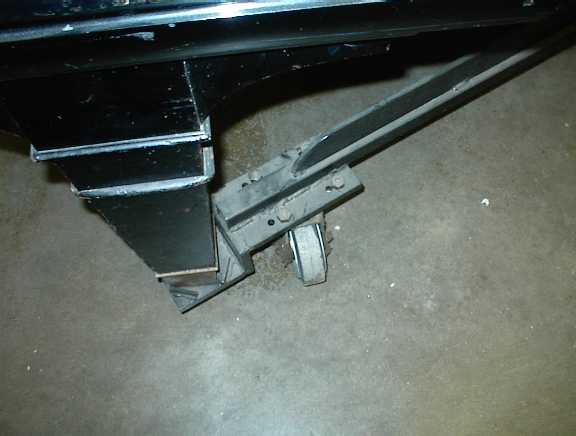

Desc: M&H-CC  #3
Url : https://www.moypiano.com/ptg/caut.php/attachments/73/d5/fe/bf/Dscmod5.jpg
